Workpiece support PTNS1 series

for production linessteelspring

Product Overview

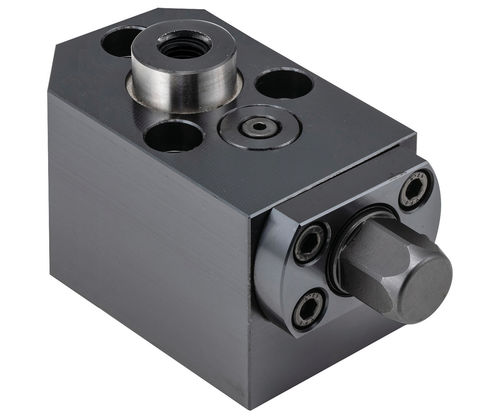

This spring-loaded work support prevents workpiece chattering and deflection during heavy-duty machining. The piston lowers when the workpiece is loaded and is locked by turning the hex head. The hex head locking shaft can be operated manually or with an impact wrench, enabling use with nut runners on automated production lines. Body: 1050 steel with black oxide finish. Hex head and locking shaft: 4135 steel, quenched and tempered, black oxide finish.

Part Options / Variants

• PTNS1-12 — H: 57 mm; Thread: M12×1.75; D: 26 mm; L: 90 mm; W: 62 mm; L3: 35 mm; H3: 12 mm; Allowable tightening torque: 29.5 ft/lbs; Support capacity: 1124 lbs; Piston spring force: 3.4–6.7 lbs
• PTNS1-16 — H: 72 mm; Thread: M16×2.00; D: 33 mm; L: 115 mm; W: 75 mm; L3: 45 mm; H3: 16 mm; Allowable tightening torque: 59.0 ft/lbs; Support capacity: 2248 lbs; Piston spring force: 3.4–6.7 lbs

Media & Documentation

• Instructions - Maintenance (PDF)
• Specifications (PDF)
• Product Video - PTNS1 (video)

Technical specifications

• Model / Denomination: PTNS1
• Product type: Spring-loaded work support with hex head locking; nut runner compatible
• Body material: 1050 steel, black oxide finish
• Hex head & locking shaft material: 4135 steel, quenched and tempered, black oxide finish
• Intended use: Prevents workpiece chattering and deflection; suitable for heavy-duty machining and automated production lines
• Locking method: Hex head locks piston position; can be operated manually or with impact wrench/nut runner
• Available variants: PTNS1-12, PTNS1-16
