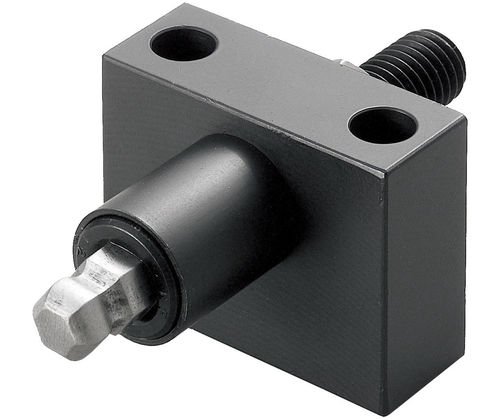

Component support BJ650 series

carbon steel

Product Description
Use this remote control unit to operate BJ350 and BJ351 work supports from a distance. Constructed from 1045 steel with a black oxide finish, the BJ650 is supplied in multiple thread/size variants to match different support sizes and strokes. Order the SKU that corresponds to the required thread and stroke for your BJ350 or BJ351 work support.


Part Options (table)
Detail | ID | SKU | Part Number | Thread T | D | D1 | L | L1 | L2 | W | W1 | W2 | H | H1 | Stroke S | Use with Work Support | PN
142679 | BJ650-06001 | BJ650-06001 | M6×1.00 -35L | 12 | 5.5 | 48 | 30 | 12 | 32 | 5 | 20 | 22 | 16 | 4 | BJ350-06001
142680 | BJ650-06002 | BJ650-06002 | M6×1.00 -35L | 12 | 5.5 | 48 | 30 | 12 | 32 | 5 | 20 | 26 | 20 | 4 | BJ351-06001
142681 | BJ650-08001 | BJ650-08001 | M8×1.25 -40L | 12 | 5.5 | 57 | 34 | 12 | 32 | 6 | 20 | 27 | 19.2 | 4 | BJ350-08001
142682 | BJ650-08002 | BJ650-08002 | M8×1.25 -40L | 12 | 5.5 | 57 | 34 | 12 | 32 | 6 | 20 | 33 | 25.2 | 4 | BJ351-08001
142683 | BJ650-10001 | BJ650-10001 | M10×1.50 -55L | 16 | 9.0 | 76 | 45 | 16 | 44 | 8 | 30 | 32 | 22.2 | 5 | BJ350-10001
142684 | BJ650-10002 | BJ650-10002 | M10×1.50 -55L | 16 | 9.0 | 76 | 45 | 16 | 44 | 8 | 30 | 40 | 30.7 | 5 | BJ351-10001
142685 | BJ650-12001 | BJ650-12001 | M12×1.75 -60L | 16 | 9.0 | 86 | 50 | 16 | 44 | 10 | 30 | 36 | 25.2 | 5 | BJ350-12001
142686 | BJ650-12002 | BJ650-12002 | M12×1.75 -60L | 16 | 9.0 | 86 | 50 | 16 | 44 | 10 | 30 | 49 | 38.2 | 5 | BJ351-12001
142687 | BJ650-16002 | BJ650-16002 | M12×1.75 -60L | 16 | 9.0 | 86 | 50 | 16 | 44 | 10 | 30 | 54 | 43.7 | 5 | BJ351-16001

Technical specifications

• Model: BJ650
• Application: Remote control unit for BJ350 and BJ351 work supports
• Material: 1045 steel
• Finish: Black oxide
• Available thread/size options and dimensional data included in table above (M6, M8, M10, M12 variants with differing lengths and strokes)
• Compatible with: BJ350 and BJ351 spring loaded work supports
