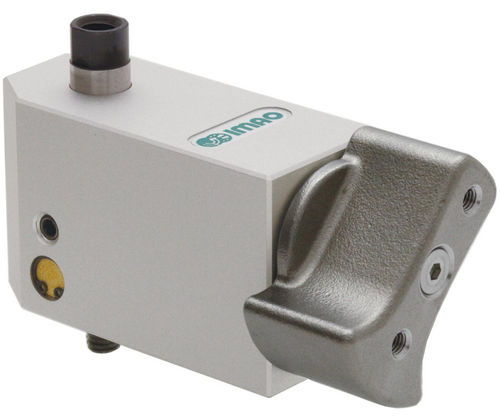

Workpiece support BJ371

aluminiumstainless steelsteel

Product overview
This precision spring-loaded work support provides stable support capacity and preserves workpiece height accuracy. The unit features one-touch precision locking and can be operated manually or via remote control. Turn the knob 45° left or right to switch between unlocking and locking positions.

Materials
Body: anodized 5052A aluminum.
Piston: SK95 steel, quenched and tempered, black oxide finish.
Knob: 303 stainless steel.

Operation & features
One-touch precision locking for quick locking/unlocking. Remote-control compatible. 45° knob rotation to engage/disengage lock. Designed to maintain consistent support force and accurate workpiece height during processing.

Available part(s)
ID: 142678 | SKU: BJ371-05001 | Part Number: BJ371-05001 | T (Thread): M3×0.50 Depth 6 | T1 (Thread): M5×0.80 | T2 (Thread): M5 | D (Contact Surface Diameter) mm: 8 | S (Stroke) mm: 3 | R (Handle Radius) mm: 17.5 | R1 (Handle at Grip Radius) mm: 15 | Support Capacity Lbs: 90

Part details
Thread mm: M3×0.50 Depth 6
Thread mm: M5×0.80
Thread mm: M5
Contact surface diameter mm: 8
Stroke mm: 3
Handle radius mm: 17.5
Handle at grip radius mm: 15
Support capacity Lbs: 90

Features / technical specifications

• Model: BJ371
• Primary material (body): anodized 5052A aluminum
• Piston material/finish: SK95 steel, quenched & tempered, black oxide finish
• Knob material: 303 stainless steel
• One-touch precision locking; 45° turn to lock/unlock
• Remote control capable
• Contact surface diameter: 8 mm
• Stroke: 3 mm
• Handle radius: 17.5 mm
• Handle at grip radius: 15 mm
• Support capacity: 90 lbs
• Available part example: BJ371-05001 (SKU ID 142678)
