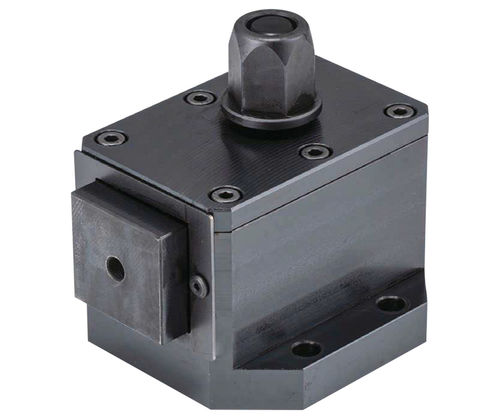

Clamp PTSC1 series

Overview
Side clamp PTSC1 designed for manual and automated production fixtures. The top-located hex head, when turned, advances the jaw to apply clamping force. The hex head can be operated by hand, with an impact wrench, or by a nut runner on automated lines. An M6 tapped hole in the jaw allows attachment of workholding grippers.

Materials and construction

• Body and jaw: 4140 steel
• Hex head: 4135 steel, quenched and tempered, black oxide finish
• Cover plate: 1045 steel, quenched and tempered, black oxide finish

Operation and mounting

• Top hex head forces jaw forward when rotated
• Operable manually, with impact wrench, or by nut runner for automated production
• M6 tapped hole in jaw for mounting grippers or tooling

Variants and technical data

• PTSC1-12 — Stroke: 8 mm; W: 32 mm; H: 50 mm; Clamping force: 1350 ft/lbs; Allowable tightening torque: 240 Lbs
• PTSC1-16 — Stroke: 11 mm; W: 42 mm; H: 65 mm; Clamping force: 2250 ft/lbs; Allowable tightening torque: 470 Lbs

Media

• Video: Video Clip - Operation (product operation video)
• Document: Specifications (PDF)

Applications

• Workholding in machining fixtures and automated assembly lines
• Integration with nut runners for repeatable, high-speed clamping
• Adaptable jaw mounting via M6 tapped hole for custom grippers
