Clamp QLSCH series

Product overview

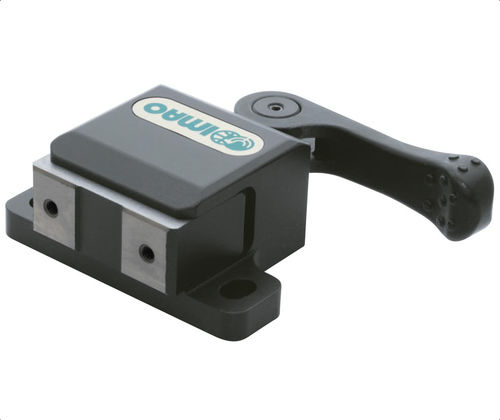

These QLSCH side cam clamps are cam-actuated devices that force the jaws forward for fast, secure workholding. Light-duty versions use spring-loaded jaws that retract when the cam is released for loading and unloading; standard versions retract the jaws by drawing them back when the cam is released. The handle position is adjustable to avoid interference. Precision-ground jaws permit clamping on finished surfaces. The clamp mounts from the top using two mounting holes.

Product types

• QLSCH — side cam clamps
• Cam handle
• Steel body, top mounting

Parts / Variants

• QLSCH32 — M4x0.70 thread, D 6.6 mm, L 51 mm, clamping stroke 1.6 mm, clamping force approx. 135 lbs
• QLSCH32L — M4x0.70 thread, D 6.6 mm, L 51 mm, clamping stroke 0.3 mm (advanced 0.8 mm), clamping force approx. 135 lbs
• QLSCH40 — M5x0.80 thread, D 8.6 mm, L 67 mm, clamping stroke 2.2 mm, clamping force approx. 270 lbs
• QLSCH40L — M5x0.80 thread, D 8.6 mm, L 67 mm, clamping stroke 0.4 mm (advanced 0.8 mm), clamping force approx. 270 lbs

Technical specifications

• Clamping type: cam-actuated side clamp — cam forces jaws forward for fast, secure workholding.
• Light-duty style: spring-loaded jaws retract when cam released for loading/unloading.
• Standard style: releasing cam draws jaws back for loading/unloading.
• Handle: steel handles; position adjustable to avoid interference. Light-duty handles electroless plated; standard styles black oxide finish.
• Body material: 1045 alloy steel with black oxide finish.
• Jaws: 1045 steel, hardened and precision ground — suitable for finished surfaces.
• Mounting: top-mounted with two mounting holes.
• Available SKUs: QLSCH32, QLSCH32L, QLSCH40, QLSCH40L (see variant list for thread, dimensions, stroke and force per SKU).
• Example clamping strokes: 1.6 mm, 0.3 mm, 2.2 mm, 0.4 mm (dependent on SKU).
• Example clamping forces: ~135 lbs (QLSCH32 / 32L), ~270 lbs (QLSCH40 / 40L).
