Clamp QLSCW

Overview

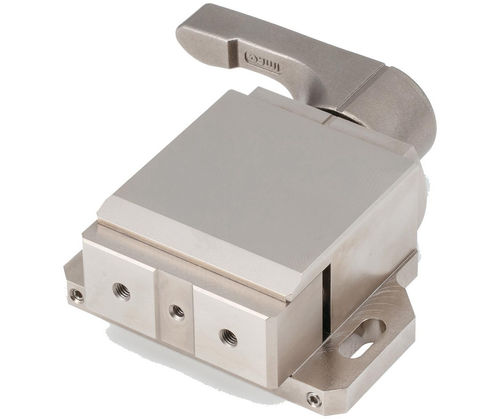

This side clamp QLSCW36-200 (Stablelock) provides a long jaw stroke with a forward-forcing jaw that also applies a downward force to prevent part lifting. It delivers a constant clamping force with a tactile 'click' at the clamping end point to avoid overtightening and part damage. Indication lines on the handle and body show locked/unlocked status. Top-mount with two holes; suitable for machining fixtures and production fixturing where repeatable lateral clamping is required.

Key features

• Long stroke and firm clamping through jaw-forward action
• Downward force prevents part lifting
• Constant clamping force with tactile 'click' at endpoint
• Visual locked/unlocked indication via alignment lines
• Top mounting with two mounting holes for secure installation

Mounting & operation

• Mounts from the top using two mounting holes
• Clamping engaged/disengaged by turning the handle
• Handle-to-pivot arrangement designed for repeatable operation

Materials and construction

• Body and jaw: electroless nickel-plated 1045 steel; jaw quenched and tempered
• Cam cylinder: electroless nickel-plated 4140 steel
• Handle: 304 stainless steel

Technical specifications

• Model / Series: QLSCW (Stablelock)
• Selected part: QLSCW36-200
• Thread: M5 x 0.80 mm
• Body length: 60 mm
• Distance between hole centers: 32 mm
• Overall (unclamped) height: 67.3 mm
• Body height: 36 mm
• Contact surface height: 23 mm
• Stroke: jaw forced forward for long stroke and firm clamping
• Mounting: top mount with two mounting holes
• Overall width: 86 mm; body width: 58 mm
