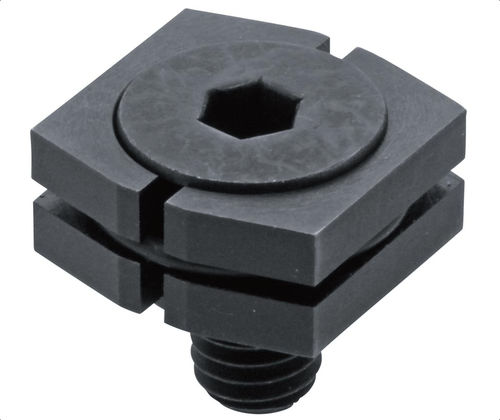

Low-profile wedge clamp CP132 series

steel

Description
Tightening the hex screw expands the jaws outward and downward, preventing workpiece lift. Designed to clamp two workpieces against fixed stops. Low profile and compact size reduce setup time and increase parts per load. CP132-A uses a countersunk head screw; CP132-B uses a socket head cap screw. Jaws: SNCM439 steel, HRC33-39, black oxide finish. Washer: 4135 steel, black oxide finish. O-ring: fluoro rubber.

Part Options (table)
ID | SKU | Part Number | Thread | L at W Max. mm | W Min. mm | W Max. mm | W1 mm | W2 mm | W3 mm | H at W Min. mm | H at W Max. mm | H1 at W Min. mm | K mm | Clamping Force (Lbs) | Allowable Screw Torque (ft/lbs) | PN
132036 | CP132-05001A | CP132-05001A | M5x0.80x15 | 9.5 | 12 | 14 | 12 | 10 | 3.3 | 7.2 | 6.2 | 0.3 | 3 | 449 | 3.17 |
132037 | CP132-05001B | CP132-05001B | M5x0.80x16 | 9.6 | 12 | 14 | 12 | 10 | 3.3 | 7.2 | 6.2 | 6.2 | 4 | 674 | 3.98 |
132038 | CP132-06001A | CP132-06001A | M6x1.00x16 | 9.3 | 15 | 17 | 14.8 | 12 | 4 | 8.5 | 7.5 | 0.3 | 4 | 786 | 5.38 |
132039 | CP132-06001B | CP132-06001B | M6x1.00x18 | 10.2 | 15 | 17 | 14.8 | 12 | 4 | 8.5 | 7.5 | 7.3 | 5 | 1,011 | 6.72 |
132040 | CP132-08001A | CP132-08001A | M8x1.25x20 | 11.3 | 18.5 | 21.5 | 18.4 | 16 | 5.3 | 11.4 | 9.9 | 0.4 | 5 | 1,124 | 13.28 |
132041 | CP132-08001B | CP132-08001B | M8x1.25x25 | 14.9 | 18.5 | 21.5 | 18.4 | 16 | 5.3 | 11.4 | 9.9 | 9.8 | 6 | 2,023 | 16.23 |

Characteristics / Technical specifications

• Model: CP132 (Wedge type, mini)
• Function: Tightening hex screw expands jaws outward and downward to prevent workpiece lift; designed to clamp two workpieces against fixed stops
• Low profile, small size for faster setup and higher parts-per-load
• Variants: CP132-A (countersunk head screw) and CP132-B (socket head cap screw)
• Jaws: SNCM439 steel, hardness HRC33-39, black oxide finish
• Washer: 4135 steel, black oxide finish
• O-ring: Fluoro rubber
• Available thread/part options include M5x0.80x15, M5x0.80x16, M6x1.00x16, M6x1.00x18, M8x1.25x20, M8x1.25x25 (see table for dimensional data and clamping forces)
• Clamping forces (examples from table): 449 lbf (CP132-05001A) up to 2,023 lbf (CP132-08001B)
