Clamp CP110 series

Product

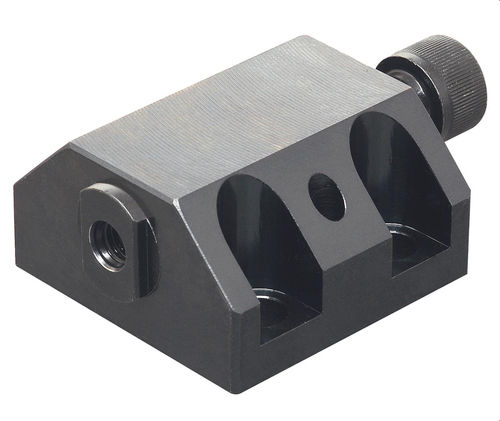

Push block clamp CP110 with cap screw — side clamp for clamping round workpieces

Product Types

• CP110 — Push block clamp (Side Clamps)
• CP112 — V-pad for push block clamp (Side Clamps)

Description
Designed to be used with V-pads (CP112) to clamp round workpieces. Custom pads can be manufactured to fit specific applications. Constructed from alloy steel with a black oxide finish; supplied with cap screw for mounting.

Part Options (table)
Columns: ID – SKU – Part Number – T (Thread) – T1 (Thread) – T2 – D (mm) – D1 (mm) – L (mm) – L1 (mm) – L2 (mm) – L3 (mm) – L4 (mm) – L5 (mm) – L6 (mm) – W (mm) – H (mm) – H1 (mm) – H2 (mm) – S – Clamping Force (Lbs) – Screw Torque (ft/lbs) – PN
128742 – CP110-08024 – CP110-08024 – M5X0.8X8 – M8X1.25 – M5 – 4 – 14 – 35 – 7.5 – 20 – 2.0 – 9.5 – 26 – 10.0 – 10 – 24 – 14 – 7 – 8 – 1,393 – 7.3 –
128744 – CP110-10029 – CP110-10029 – M6X1X10 – M10X1.50 – M6 – 4 – 18 – 45 – 10 – 25 – 2.0 – 12.0 – 35 – 12.5 – 12 – 29 – 16 – 8 – 10 – 2,472 – 16.2 –
128746 – CP110-12031 – CP110-12031 – M8X1.25X12 – M12X1.75 – M8 – 6 – 20 – 55 – 12.5 – 30 – 2.5 – 15.0 – 40 – 15.0 – 14 – 31 – 18 – 8 – 12 – 4,496 – 35.4 –
128748 – CP110-16037 – CP110-16037 – M10X1.5X15 – M16X2.00 – M10 – 8 – 25 – 70 – 15 – 40 – 3.0 – 18.0 – 50 – 7.5 – 19 – 37 – 20 – 8 – 16 – 8,317 – 81.2 –

Available Sizes / Selection

• Body Length (mm) options: 35, 45, 55, 70
• Overall Height (mm) options: 24, 29, 31, 37

Media / Documents
Specifications PDF available for this product.

Technical specifications

• Material: Alloy steel
• Finish: Black oxide finish
• Primary use: Designed to clamp round workpieces using V-pads; compatible with custom pads to fit specific applications
• Compatible pad: V-pads (CP112 is V-pad for push block clamp)
• Available thread sizes and mounting options: multiple thread combinations shown in part options (examples: M5, M6, M8, M10; T1 threads M8x1.25, M10x1.50, M12x1.75, M16x2.00)
• Range of overall body lengths: 35–70 mm (selectable)
• Range of overall heights: 24–37 mm (selectable)
• Clamping force (examples from options): from ~1,393 lbs up to ~8,317 lbs depending on variant
• Screw torque examples: from ~7.3 ft/lbs up to ~81.2 ft/lbs depending on variant
• Multiple detailed dimensional variants provided (see Part Options table for per-SKU dimensions)
