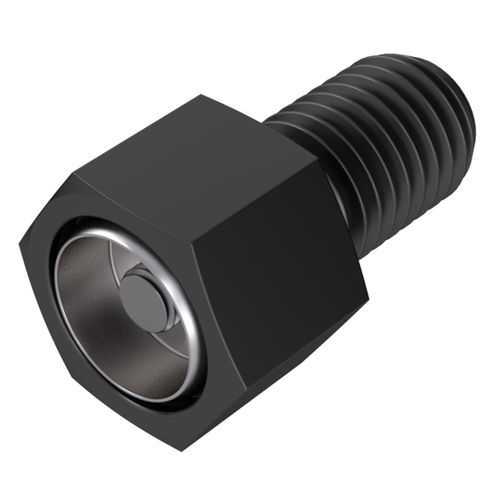

Leveling screw BUH series

with hexagonal headhex socketstainless steel

Overview
The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440C stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or when a different style pad is required. Housing made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter.

Features

• Replaceable pad allows self-alignment on uneven surfaces
• Pad seats in hardened 440C stainless ball cup (Rc 58/60)
• Pad retained with a lock screw for secure positioning
• Housing: alloy steel, heat treated to Rc 43/46, black oxide finish
• Swivot assembly supplied without pad; pads sold separately

Available Part Options (table representation)
Header: ID - SKU/Part Number - Thread - Replaceable Pad Dia. (in) - L (in) - H (in) - H1 w/3/8 in. Pad (in) - H1 w/1/2 in. Pad (in) - SW (in) - V Degrees - K (in) - Ball Dia (in) - Load Rating (Lbs)
101772 - BUH-0230 - 3/8-24 - 3/8 - 1/2 - 1/2 - 1/8 - 1/4 - 5/8 - 20° - 1/8 - 1/2 - 3,446
101883 - BUH-0231 - 3/8-24 - 3/8 - 1 - 1/2 - 1/8 - 1/4 - 5/8 - 20° - 1/8 - 1/2 - 3,446
101996 - BUH-0231X1.5 - 3/8-24 - 3/8 - 1-1/2 - 1/2 - 1/8 - 1/4 - 5/8 - 20° - 1/8 - 1/2 - 3,446
102097 - BUH-0240 - 1/2-20 - 1/2 - 1 - 5/8 - 1/8 - 1/4 - 13/16 - 24° - 3/16 - 5/8 - 7,178
101965 - BUH-0370 - 3/8-16 - 3/8 - 1/2 - 1/2 - 1/8 - 1/4 - 5/8 - 20° - 1/8 - 1/2 - 3,446
102080 - BUH-0375 - 3/8-16 - 3/8 - 1 - 1/2 - 1/8 - 1/4 - 5/8 - 20° - 1/8 - 1/2 - 3,446
102177 - BUH-0375X1.5 - 3/8-16 - 3/8 - 1-1/2 - 1/2 - 1/8 - 1/4 - 5/8 - 20° - 1/8 - 1/2 - 3,446
102362 - BUH-0500 - 1/2-20 - 1/2 - 1-1/2 - 5/8 - 1/8 - 1/4 - 13/16 - 24° - 3/16 - 5/8 - 7,178
102473 - BUH-0510 - 1/2-13 - 1/2 - 1 - 5/8 - 1/8 - 1/4 - 13/16 - 24° - 3/16 - 5/8 - 5,937
102605 - BUH-0515 - 1/2-13 - 1/2 - 1-1/2 - 5/8 - 1/8 - 1/4 - 13/16 - 24° - 3/16 - 5/8 - 5,937

Media & Documents
Gripper technical information document available for this product (technical PDF).

Technical specifications

• Pad seating: hardened 440C stainless ball cup, hardness Rc 58/60
• Housing material: alloy steel, heat treated to Rc 43/46
• Finish: black oxide
• Pad retention: lock screw
• Assembly: Swivot assembly supplied without pad; pads must be selected and ordered separately to match diameter
• Multiple thread and size options available (see part options list above)
