Thrust screw TSH series

stainless steelalloyswiveling ball

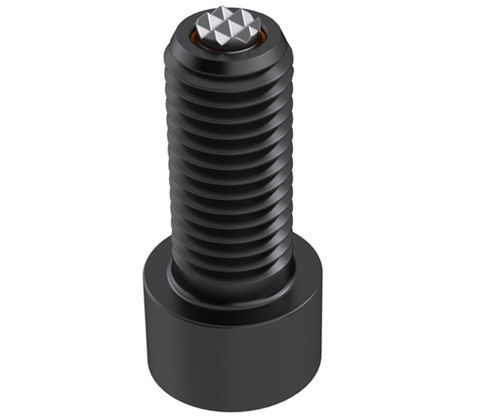

Product Overview These thrust screw assemblies allow straight line static load thrust without transmitting torsional or radial force to the contact area. The free-floating ball design permits the thrust screw to continue rotating while the ball remains stationary against the contact surface, making it ideal for irregular-shaped or contoured parts. Housing is alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is retained by a Viton O-ring to exclude contaminants while allowing swivel. The abrasive surface is permanently fused to a 300 series stainless steel pad and has a texture comparable to 100 grit abrasive. Individual diamond particles concentrate holding pressure on a very small, well-distributed area to deliver superior holding with minimal surface marking. The diamond surface offers exceptional wear resistance. Replacement balls and O-rings are available separately.

Features

• Free-floating ball design for static thrust without transmitting torque or radial loads
• Housing: alloy steel, heat treated to Rc 43/46
• Finish: black oxide
• Replaceable ball retained by Viton O-ring to exclude contaminants and allow swivel
• Abrasive diamond surface permanently fused to 300 series stainless steel pad
• Surface texture comparable to 100 grit for superior holding with minimal marking
• Excellent wear resistance due to diamond abrasive particles
• Replacement balls and O-rings available separately

Part Options (selected table fields) Thread | D | D1 | L | L1 | H | H1 | Swivel Deg | K | Ball Dia | Ball Only Part No. | Load Rating (Lbs)
TSH-0231-FC-DS | 3/8-24 | 1/4 | 9/16 | 1 | 1 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0231X1.5-FC-DS | 3/8-24 | 1/4 | 9/16 | 1-1/2 | 1-1/2 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0231X2.5-FC-DS | 3/8-24 | 1/4 | 9/16 | 2-1/2 | 1-3/8 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0231X2-FC-DS | 3/8-24 | 1/4 | 9/16 | 2 | 1-3/8 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0375-FC-DS | 3/8-16 | 1/4 | 9/16 | 1 | 1 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0375X1.5-FC-DS | 3/8-16 | 1/4 | 9/16 | 1-1/2 | 1-1/2 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0375X2.5-FC-DS | 3/8-16 | 1/4 | 9/16 | 2-1/2 | 1-1/2 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0375X2-FC-DS | 3/8-16 | 1/4 | 9/16 | 2 | 1-1/2 | .38 | 3/32 | 28 | 5/16 | 3/16 | BUB-187-FC-DS | 1,763
TSH-0500X1.25-FC-DS | 1/2-20 | 11/32 | 3/4 | 1-1/4 | 1-1/4 | .50 | 3/32 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527
TSH-0500X1.5-FC-DS | 1/2-20 | 11/32 | 3/4 | 1-1/2 | 1-1/2 | .50 | 3/32 | 28 | 3/8 | 9/32 | BUB-200-FC-DS | 4,527

Characteristics / Specifications

• Series / Model: TSH-FC-DS (Abrasive diamond cone, headed design)
• Housing material: alloy steel, heat treated to Rc 43/46
• Pad material: 300 series stainless steel with permanently fused diamond abrasive
• Abrasive texture: comparable to 100 grit
• Ball retention: Viton O-ring (excludes contaminants and permits swivel)
• Ball: replaceable (replacement balls and O-rings available)
• Finish: black oxide on housing
• Intended use: holding smooth, slippery, irregular or contoured applications with minimal clamping pressure
• Load ratings: examples shown in table (e.g., 1,763 lbs and 4,527 lbs depending on size)
