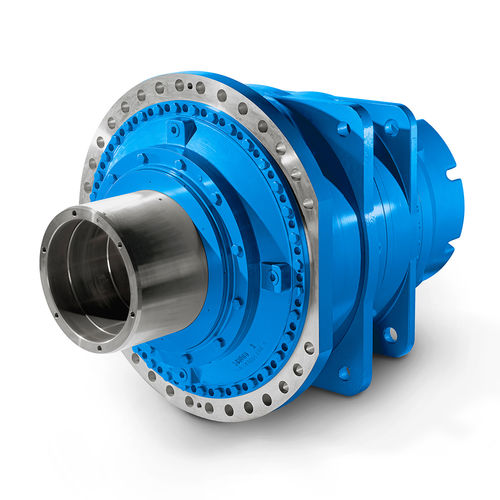

Planetary gear reducer PLANUREX® 2 series

coaxial> 10 kNmtransmission

PLANUREX 2 Planetary gear unit which can be installed horizontally or vertically Nominal torque range from TKN = 117,000 Nm to 2,600,000 Nm with 22 sizes Nominal transition range from i = 25 to 4,000 Optimal drive solution for maximum performance The PLANUREX® 2 series has not only proven its worth over the course of many years in a large number of applications and under the most severe operating conditions. The units’ high quality and reliability have also allowed them to set global standards. The finely spaced series offers wide variety due to various output shafts, conformity to different motor standards, application-specific auxiliary equipment and load-sharing options. This permits a large number of possible applications to be catered for. The modular design allows a large number of basic components to be standardized, in particular planetary stages and housing components as well as drive- and output-side components. The resulting reduction in complexity makes it possible to produce economic batch sizes to a high quality standard. The PLANUREX gear units’ robust design guarantees process stability above all. Rely on the PLANUREX 2 to guarantee maximum operational reliability. Your benefits at a glance Easily combined with other gear units such as upstream helical, worm, bevel or bevel-helical gear units Low-noise operation due to low rolling and sliding speeds at the tooth flanks Greatest power capacity and maximum reliability High efficiency Comprehensive accessory program Available as an individual gear unit or as an Integrated Drive System
