Polyethylene edge protector

plasticfor lifting beltenvironment-friendly

The Belt Edge Protector (BEP) is a wear-resistant UHMW edge cover designed to prevent packages from sliding beneath conveyor belts, reducing product loss and unplanned downtime.

Features

• Made from recycled, wear-resistant UHMW with Shore D 61 hardness
• Covers the edge of the belt and prevents packages from becoming jammed beneath
• Available in 8 ft pieces and easily cut to fit any conveyor length

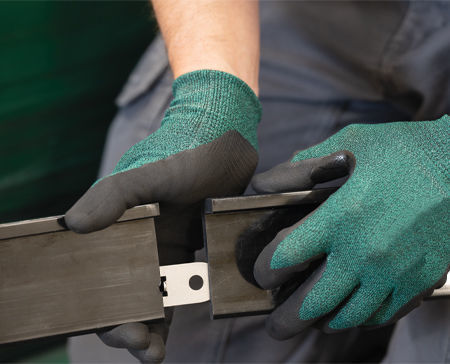

• Included link plate creates seamless connection between pieces
• Easy to stage and quickly installs to the conveyor side wall

How to Order

• Determine the total linear feet of conveyors to be protected and whether both belt edges will be fitted with BEPs to calculate required footage
• Determine the number of Protector Kits required. Each kit includes eight 8 ft pieces (64 ft per kit)
• Determine how many Install Kits are needed based on the number of BEP Kits, the number of systems requiring installation, and the number of labor crews working simultaneously

Install Kits are required for proper installation. Each Install Kit includes drill bits, additional shims to align BEPs to the belt, and an appropriate-size wrench for fastening to the conveyor side wall.

Specifications

• Material: recycled UHMW (ultra-high-molecular-weight polyethylene)
• Hardness: Shore D 61
• Standard piece length: 8 ft (pieces can be cut to fit any conveyor length)
• BEP kit contents: (8) 8 ft pieces — 64 ft total per kit
• Link plate: included to create seamless connections between pieces
• Install Kit contents: drill bits, additional shims, and an appropriate-size wrench
• Mounting: fastens to conveyor side wall for edge coverage
