Thermoplastic wear plate

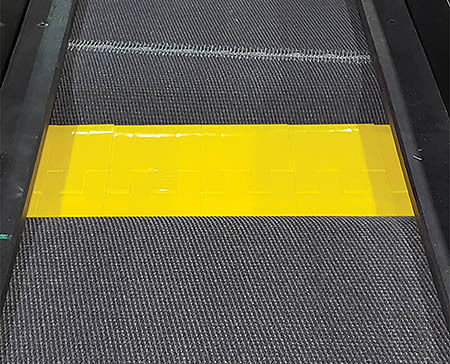

Segmented Transfer Plates from Flexco are modular transfer plates designed to prevent product loss at conveyor transfer points and provide a smooth transition between belts, chutes, or structures. They reduce potential damage to conveyed product, the belt, and conveyor structure while improving material flow and reducing jams.

Key benefits

• Prevents product loss at transfer points and reduces risk of damage to product, belt, and conveyor structure.
• Provides a smooth transition between belt-to-belt, belt-to-chute, or belt-to-structure to minimize choking and jams.

Features

• Accommodates belt widths up to 60" (1500 mm) and standard gaps from 4" to 10" (100 mm to 250 mm).
• Narrow-gap option for pulley-to-pulley gaps from 1.5" to 3" (38 mm to 75 mm).
• HDPE interlocking segments with low coefficient of friction to allow product to slide across the transfer.
• Precision-molded segments ensure accurate fit within the gap.
• Bright yellow color for easy visual monitoring and replacement scheduling.
• Two-piece mounting bracket for simplified mounting and removal; multiple bracket/kit options available (top mount, wide flange, inverted, long drop, dual slot, extra long, adjustable arc, stainless hardware kits, etc.).

Technical specifications

• Belt width capacity: up to 60" (1500 mm).
• Standard gap range: 4" to 10" (100 mm to 250 mm).
• Narrow-gap option: 1.5" to 3" (38 mm to 75 mm).
• Segment material: HDPE (low coefficient of friction).
• Segment design: precision-molded, interlocking segments for accurate fit.
• Color: bright yellow for visual monitoring.
• Mounting: two-piece mounting bracket for easy installation and removal; multiple bracket/kit options.
• Product resources: sell sheets, instruction manuals (IOM) and installation videos available for standard, narrow-gap and midsize configurations.
