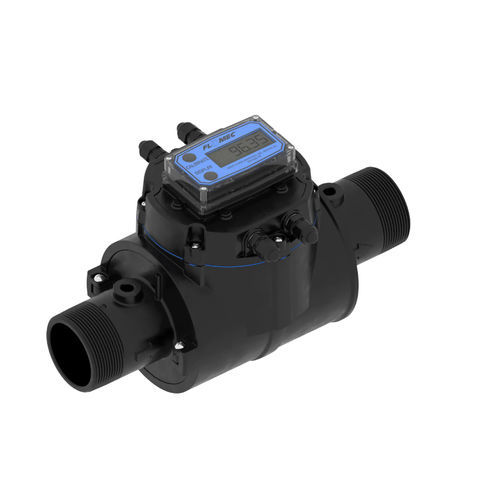

Magnetic flow meter QSE

for waterfor gasDN100 - 4"

The FLOMEC® QSE Mag dramatically raises performance expectations for monitoring flow measurement and is priced comparably to far lower performing meters currently employed in commercial and industrial applications. Examples include water/wastewater, cooling tower, turf, landscape, and other water reclamation applications. The FLOMEC® QSE Mag reads flow rate with an accuracy of + 0.5% and provides cumulative total monitoring in applications. With no moving parts, the FLOMEC® QSE Mag permits open unobstructed flow, minimizing flow disturbances and straight pipe requirements in seven line sizes from ½” to 4” pipes. This allows the FLOMEC® QSE Mag to be used in piping configurations where there is little space between the meter and an elbow or valve. In addition, the Noryl® flow tube, housing and sleeves can withstand fluid temperatures up to 210°F. The FLOMEC® QSE Mag is an externally powered meter that provides a blind open collector pulse output and can be utilized with a FLOMEC® 09 Electronic Display or remote read option. Features & Benefits Low investment and operating costs Wide turndown ratio of 60:1 Non-intrusive, no moving parts to wear out, maintenance, repair costs low and tolerates high flows without damage The slightly modified bore permits unobstructed flow and minimizes flow disturbances and straight pipe requirements Housing ported with “Thermal Well Supports” for sensors (Energy Management) Compatible with FLOMEC® 09 Electronics Display or QSI I/O Board Along with the FLOMEC®QSE Mag, there is also an optional new input/output interface module that can be used with many telemetry applications.
