Magnetic float level switch FMIPL-DLS

electromechanicalfor liquidsfor tanks

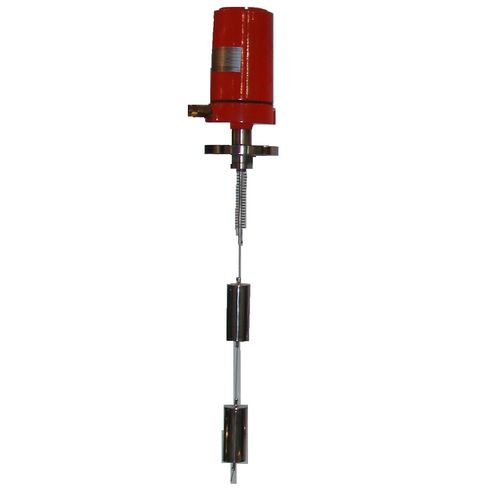

Displacer Type Level Switch Manufacturers,Supplier,Exporter,Trader,Dealer Displacer Type Level Switch DESIGN FEATURES: Mounting: Min. 50 NB to 300 NB. Rugged, industrial level switches specifically designed for versatility of application Stainless steel switching mechanisms – no aluminium or brass High pressure capability Wide variety of agency approvals Versatile switching mechanisms for retro-fit situations Ideal for Deep tank or Sump for low alarm. Pressure : Vacuum to 40 Kg / cm2 Two / Four displacers available for pump control. Suitable for high temperature Level Height up to 20 Mtr Displacer Type Level Switch Works on force Balance Principle. Displacer is suspended by a spring. When liquid level rises and covers the displacer, it becomes lighter and the spring relaxes. This causes a small upward movement of the rod assembly inside the casing which activates the magnetically operated micro switch. Mounting: min. 80 NB to 300 NB. Ideal for Deep tank or Sump for low alarm. Pressure: vacuum to 15 Kg/Cm2. Two displacers available for pump control. Suitable for high temperature. External cage on request. For High Temperature (Max 350oC on request)
