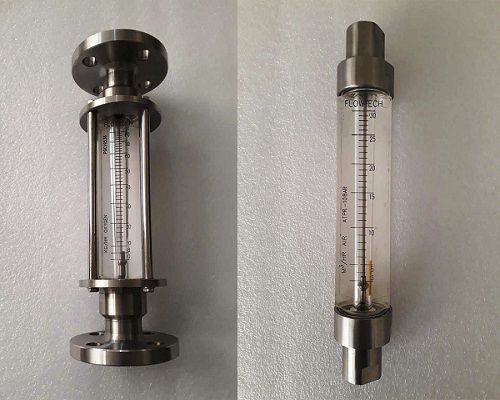

Differential pressure flow meter GTR S 22

for waterfor gasvertical

Acrylic Body Rotameters DESIGN FEATURES: Suitable for water, saline water, air N2 H2 and natural gases Adjustable Low & High Flow , switch FRP Coated body for corrosive plant TC joint connection Available from 15 NB to 100 NB pipe size and ranges between 30 to 40,000 LPH of water at ambient temperature Accuracy=2%FSD DESCRIPTION: “FLOWTECH” Acrylic Body Tube Variable Area Flow Meters (Rotameters) are intended for general in line metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Acrylic Body metering tubes. These are the principle of Variable Area. The float moves freely up and down tapered Acrylic body Tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. When fluid or gas flows through a taper tube containing a float, a pressure difference of P1 and P2 is created between upper and lower side of the float. The float moves upwards by a force obtained by multiplying the pressure differential by the maximum cross sectional area of the float. Due to taper tube, as the float moves upwards, the fluid passing area increases as a result of which the differential pressure decreases. Upward movement of float stops when the dead load is dynamically balanced by the differential pressure.
