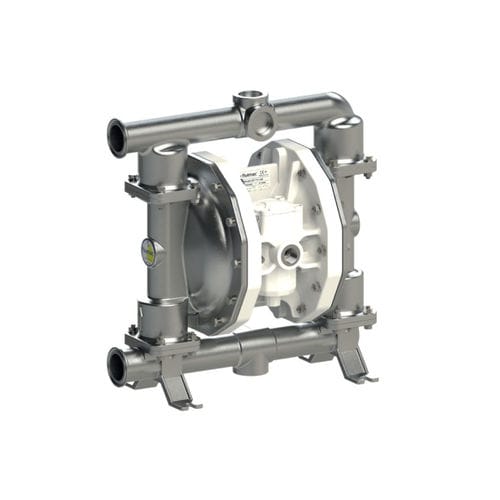

Double-diaphragm pump PF170for chemicalsairair-driven
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- for chemicals, air
- Operation
- air-driven
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Other characteristics
- flow
- Flow
Max.: 170 l/min
(44.90925 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Head
Max.: 80 m
(262'05" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -20 °C
(-4 °F)- Length
357 mm
(14 in)- Width
222 mm
(8.74 in)- Height
371 mm
(14.61 in)- Weight
20 kg
(44.09 lb)
Description
To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory:
The required flow rate of the fluid (Flow rate l/min)
The total prevalence (Head H)
By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
