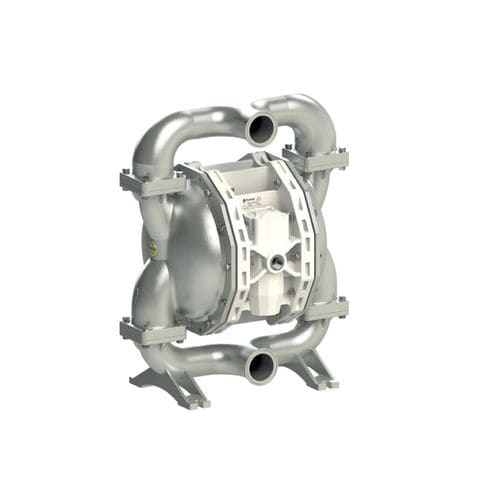

Double-diaphragm pump PF700
for chemicalsairair-driven

Double-diaphragm pump - PF700 - FLUIMAC - for chemicals / air / air-driven
Double-diaphragm pump - PF700 - FLUIMAC - for chemicals / air / air-driven
Add to favorites
Compare this product
Go to the FLUIMAC website for more information

Characteristics

Technology
double-diaphragm
Fluid
for chemicals, air
Operation
air-driven
Priming
self-priming
Mobility
stationary
Domain
industrial
Applications
lift, suction
Other characteristics
dry
Flow

Max.: 380 l/min
(100.38538 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Pressure

Max.: 8 bar
(116.03 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 80 m
(262'05" )

Min.: 0 m
(0'00" )

Fluid temperature

Max.: 95 °C
(203 °F)

Min.: -20 °C
(-4 °F)

Length

487 mm
(19 in)

Width

345 mm
(13.58 in)

Height

598 mm
(23.54 in)

Weight

53 kg
(116.84 lb)

Description

To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory: The required flow rate of the fluid (Flow rate l/min) The total prevalence (Head H) By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
