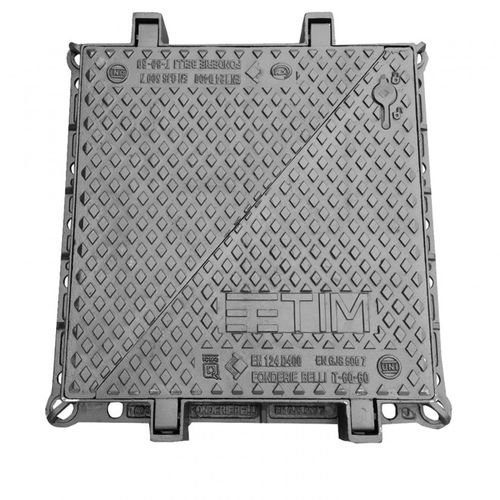

Square manhole SERIE T D400

rectangular

Inspection manhole cover in ductile iron EN- GJS-500-7 conforming to norm EN 1563:2018 with load bearing capacity over 400 kN (40 tons), conforming to the load class D400 as set out by norm EN 124:2015 FRAME It is realized in a single cast, it can be opened by triangular section covers with double hinges, with the aim of having free access to two/three sides. Externally, the outside border is flanged in order to optimise its hold in the cement and it has specific holes for the insertion of anchoring bolts. COVERS It comes triangular in shape, it is hinged to the frame with top opening of 110°. At 90° it assumes the automatic safety blocking position and can be removed without disassembling the hinge. This method allows partial and sequential opening with. The master half cover section is provided with a stainless steel lock, operable using a special shaped key which guarantees safety and prevents the opening of the manhole covers by non authorised personnel. Furthermore the key becomes a comfortable handle for opening and closing the cover. The upper surface is designed to be non-skid to allow the complete flow of water and avoid the creation of ice. ACCESSORIES Handle Key05 Stainless steel lock
