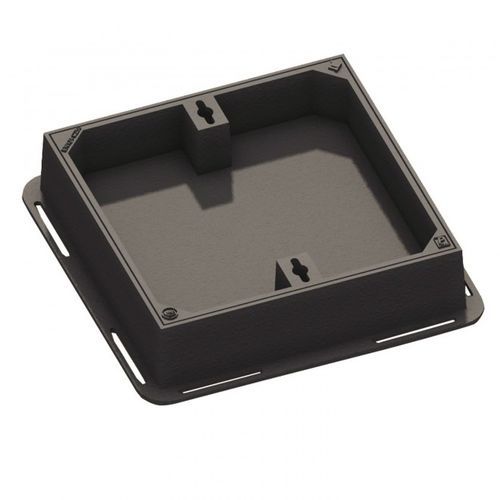

Ductile iron manhole cover CRB/CRC - B125-C250

squarerectangular

Inspection manhole cover in ductile iron EN-GJS-500-7 conforming to norm EN 1563:2018 with load bearing capacity over 250 kN (25 tons) and 125 KN (12,5t), conforming to the load class C250 and B125 as set out by norm EN 124:2015 FRAME It is obtained from a single cast, its stability is guaranteed through a double throat supporting area, creating a metal to metal coupling system thanks to the interposition of an EPDM gasket, this is studied to obtain a watertight/ waterproof sealing. Inside there is also a special provision to host, if necessary, the glass reinforced plate (GRP). COVER It is square shaped and it ensures stability thanks to the joint depth superior to mm 50. The opening can be done through the inserting of handle keys on the surface where there are blind holes. The recessed tank is 70mm high and it can be filled with any kind of material. All the covers are interchangeable. ACCESSORIES Lifting Key 06 Hexagonal Key Screws in stainless steel diam. 10
