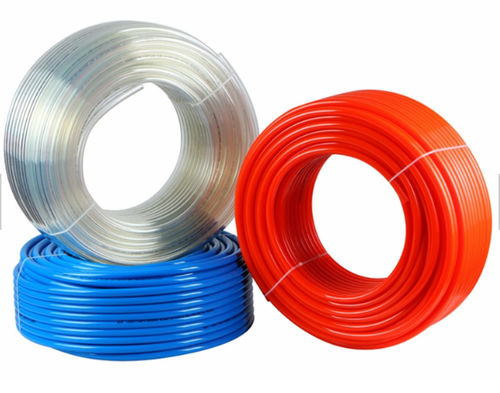

Pneumatic tube PU120830TPUflexible
Add to favorites
Compare this product
Characteristics
- Use
- pneumatic
- Material
- TPU
- Other characteristics
- flexible
- Inner diameter
Max.: 12 mm
(0.472 in)Min.: 2.5 mm
(0.098 in)- Outer diameter
Max.: 16 mm
(0.63 in)Min.: 4 mm
(0.157 in)- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)- Delivered length
30 m
(98'05" )
Description
* 100% new material
* Quick delivery time.
* OEM Length:30m/coil or 25m/coil
Diameter Tolerances ±0.1mm～±0.15mm
Hardness :95A or 98A
Tensile Strength：400kgf/cm2, 5690 PSI
Elongation at Break: 490-590%
Abrasion :35mg
Tearing Strengh: 1565 PSI
Safety Factor 3:1
Min bending angle: 3*2-12℃ 4*2.5-12℃ 5*3-33℃ 6*4-35℃ 8*5-39℃ 8*5.5-46℃ 10*6.5-43.5℃ 10*7.5-42℃ 12*8-37℃ 12*9.5-54℃ 14*10-70℃ 16*12-70℃
