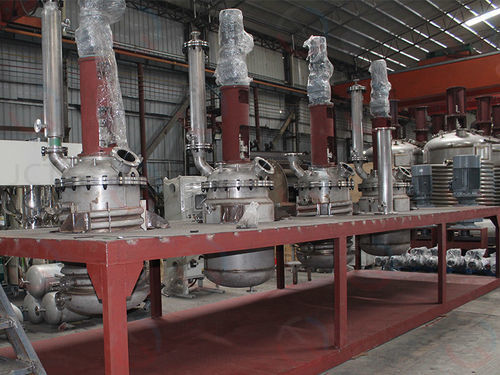

Reactor for the pharmaceutical industry High-performance Reactor

for cosmeticsfor industrysteel

JCT specializes in manufacturing various types of reactors, including stainless steel reactor, jacketed reactor, and pipe coil reactor, which are widely used in the resin, coating, adhesive, cosmetics, and pharmaceutical industries. In modern chemical production, the reactor is the key equipment for achieving chemical reactions in materials. Whether in the resin, coating, adhesive, pharmaceutical, or food industries, the reactor is responsible for mixing, heating, reacting, and cooling raw materials. Reactor Parameters - Equipment volume: 200L - 80,000L (working volume: 80~90%) - Working temperature: -20℃ ~ +300℃ - Working pressure: -0.1 (vacuum pressure)MPa ~ +1.6MPa - Equipment material: SS304/316, Q235-B carbon steel - Mixing power: 0.75kW-160kW - Mixing speed: Low speed mixing: 0~300rpm, reducer to slow down High speed dispersion: 0-1000-1500-2800rpm, frequency converter speed regulation - Mixing structure: inclined propellet type, anchor type, anchor frame type, spiral belt type, turbine type, dispersed disc type, combined type, etc. - Sealing structure: Mechanical seal, packing seal, etc. - Heating and cooling structure: outer jacket, outer half pipe, inner pipe Reactor Structure - Reactor kettle - Agitator system - Heating system - Sealing system - Control system (automatic temperature, pressure and speed control) How to choose reactor? - Industry: Adhesive Recommended Reactor Configuration: Cooling jacket, high-shear dispersion system Feature: Suitable for high-viscosity reactions - Industry: Resin Recommended Reactor Configuration: External coil heating, high-temperature and pressure-resistant design Feature: Improves polymerization efficiency - Industry: Coating Recommended Reactor Configuration: Precise temperature control system, automatic discharge valve Feature: Stable color and consistent viscosity - Industry: Pharmaceutical and Food Recommended Reactor Configuration: SS304/316, mirror polished Feature: Meets hygiene standards Why choose JCT's reactor? - Our own factory provides full-process processing including welding, polishing, sandblasting, and pressure testing. - Experienced electronic control engineers design automation systems. - On-site installation and commissioning services are available. - Compatible with sigma mixer and disperser to form a complete production line. Additional Features - Reactor inner mirror polished - Automatic welding - Reactor sandblasting - Small-scale reactor available Technical Specifications / Features - Equipment volume: 200L - 80,000L (working volume: 80~90%) - Working temperature: -20℃ ~ +300℃ - Working pressure: -0.1 (vacuum pressure)MPa ~ +1.6MPa - Equipment material: SS304/316, Q235-B carbon steel - Mixing power: 0.75kW-160kW - Mixing speed: Low speed mixing: 0~300rpm; High speed dispersion: 0-1000-1500-2800rpm - Mixing structure: inclined propellet, anchor, anchor frame, spiral belt, turbine, dispersed disc, combined type - Sealing structure: Mechanical seal, packing seal - Heating and cooling structure: outer jacket, outer half pipe, inner pipe
