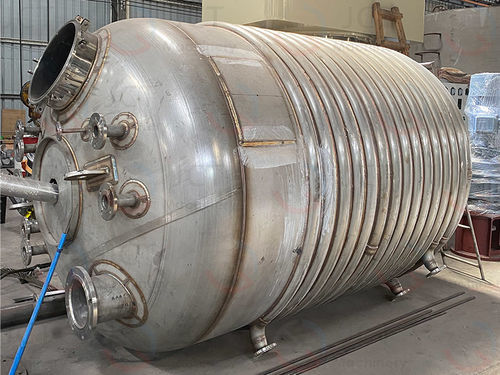

Stirred-tank reactor

for industryfor the chemical industryfor medium-viscosity liquids

Overview
Hot melt glue production line reactor is used for resin polymerization, modification reactions, melt mixing and formulation to ensure stable product viscosity, uniform molecular weight and stable thermal properties. It supports flexible switching between formulations and is suitable for continuous production.

Applications

• Packaging hot melt adhesives
• Pressure-sensitive label adhesives
• Bookbinding adhesives
• Medical hot melt adhesives
• Adhesives for bandages
• Industrial assembly adhesives

System characteristics

• Processed materials typically have high viscosity
• Operation at elevated temperatures
• Raw materials may oxidize easily
• Products tend to generate bubbles and require degassing

Reactor features

• Forced stirring structure (inclined paddle + anchor + ribbon)
• Precise temperature control and zoned heating
• Insulated conveying design to maintain temperature
• Designed for stable product quality and easy formulation changeover

Equipment configuration

• Automatic raw material feeding system
• High-temperature thermal oil heating system
• Reactor
• Vacuum degassing system
• Filtration system
• Insulated gear-pump conveying system
• Granulation/block forming system
• Automatic packaging system
• PLC automatic control system

3500L reactor parameters (reference)
Motor: 4.5 kW, 6P
Reducer: helical gear reducer
Inner cylinder: φ1600 × 1500 × δ10, SS304
Main shaft: φ100, SS304
Blade type: inclined paddle + anchor + ribbon (enhanced)
Outer coil: outer half-tube heating, diameter 89×3 mm, divided into 2 heating zones, Q235-B
Heating: heat-conducting oil circulation
Temperature measurement and pipe outlets configurable; inner wall and internal parts polished; inner cylinder vacuum resistant and withstands internal pressure up to 0.3 MPa

Notes
Equipment can be designed and customized according to actual production requirements.

Characteristics / Technical specifications

• Reference capacity: 3500 L
• Materials: inner cylinder and main shaft in SS304; outer coil Q235-B
• Motor power: 4.5 kW (6P)
• Agitation: forced stirring with inclined paddle, anchor and ribbon
• Heating: thermal oil circulation via outer half-tube coil with zoned heating
• Pressure resistance: inner cylinder vacuum resistant up to 0.3 MPa
• Surface finish: polished inner surfaces
• Process control: precise temperature measurement; PLC control available
• Auxiliary systems: vacuum degassing, filtration, insulated gear-pump conveying, granulation/block forming and automatic packaging
