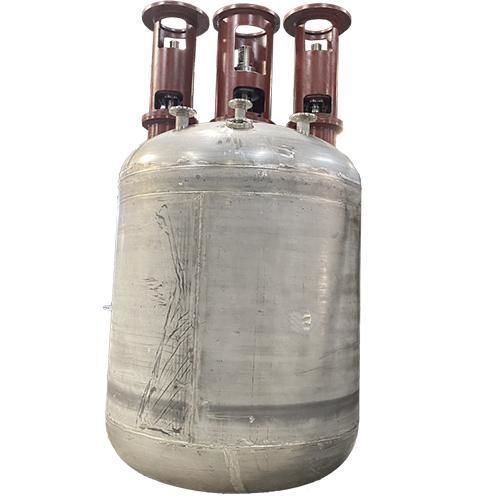

Stirred-tank reactor Triple Shaft Reactor

for medium-viscosity liquidsfor industrymultipurpose

Stirring System of Triple Shaft Reactor - Scraper Stirrer: Slow-speed operation and wall-attached stirring prevent materials from sticking to the wall and local overheating, suitable for high-viscosity materials. - Dispersing Disc: Provides strong shear force to improve material dispersion uniformity, suitable for solid-liquid mixing and powder dispersion. - Helical Stirrer: Enhance the up and down flipping effect, fully mix high-viscosity materials, and improve heat transfer efficiency. Technical Features of Triple Shaft Reactor - Suitable for high-viscosity materials (10,000-1,000,000cP), such as adhesive, sealants, resins, coatings, etc. - Uniform stirring, avoiding dead corners, and improving reaction efficiency. - Highly efficient heat transfer, heating/cooling control can be achieved with jackets or coils. - Vacuum operation, can be used for degassing, defoaming and improving product quality. Comparison Table - Mixing System: Triple shaft stirring system, including frame type/anchor type stirring, high-speed dispersion plate, ribbon/screw stirring - Applicable Viscosity: Applicable to high viscosity materials (10,000-1,000,000cP) - Mixing Effect: Multi-shaft stirring acts at the same time, the dispersion is even, there is no dead corner, and it is applicable for high viscosity, high solid content systems - Heating / Cooling Methods: Jacket and coil heating, but because the spiral ribbon stirring can enhance the material flow, the heat transfer efficiency is higher - Applicable Process: Applicable to processes with high viscosity, high shear, and high dispersion requirements, such as adhesives, sealants, resins, creams, etc. - Degassing / Defoaming Ability: Strong degassing ability, combined with high-speed dispersion and vacuum, can effectively remove bubbles and improve product quality Product Type: Triple Shaft Reactor Brand: JCT Machinery Application: High viscosity, high shear, high dispersion processes (adhesives, sealants, resins, special coatings, creams, etc.) Stirring Modes: Scraper stirrer, dispersing disc, helical stirrer Viscosity Range: 10,000-1,000,000cP Heating/Cooling: Jacket or coil, enhanced by spiral ribbon stirring Vacuum Operation: Yes, for degassing and defoaming Mixing Effect: Uniform, no dead corners, suitable for high solid content
