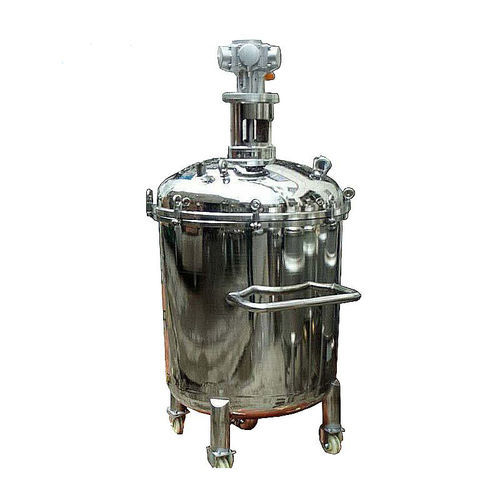

Stirred-tank reactor

for the pharmaceutical industryfor industryfor chemicals

Overview
JCT Machinery jacketed (stainless steel) reactors are kettle‑type reaction vessels with integrated agitation and an external jacket for circulating heating or cooling media. They are used for controlled-temperature chemical, pharmaceutical, dye and coatings processes where agitation and thermal transfer are required.

Main unsafe conditions

• Air ingress during maintenance (open manhole, incomplete replacement) can form explosive mixtures inside the vessel.
• Using flammable gases for pressurization, pressure or leak testing without proper controls may create explosive atmospheres.
• Hot work performed without hot‑work risk analysis, certified hot‑work permits or proper isolation (blind plates) increases fire/explosion risk.
• Poorly sealed bolts, flanges or valve connections can leak under pressure or fail during operation.
• Operation beyond design load (overpressure, overload) can lead to catastrophic failure.
• Unauthorized lowering of liquid levels may disable water seals and allow air suction into pumps/compressors, creating explosive mixtures.
• Undetected process‑parameter changes (e.g., oxygen ingress, temperature excursions) can trigger hazardous reactions.

Main types of operational errors

• Incorrect sequence during equipment replacement and cleaning causing trapped hazards.
• Improper valve operation (staggering, wrong sequence, delayed actions) causing backflow, trapped pressure or overpressure.
• Feeding too quickly or unevenly leading to rapid temperature rise or solidification within the vessel.
• Failure to remove condensate timely or incorrect condensate handling causing overpressure.
• Compressor or pump suction errors allowing air ingress and formation of explosive mixtures.
• Premature stopping of pumps or cooling circulation causing local overheating and equipment damage.
• Introducing incorrect materials that may decompose or react violently during recycling or processing.
• Incorrect outlet valve handling causing overflow or roof discharge with increased ignition risk in presence of open flames.

Jacketed reactor design (key points)

• Construction: stainless steel vessel body with internal agitator and external or integrated jacket for heat‑transfer medium circulation.
• Jacket function: enables controlled heating or cooling by circulating a thermal medium to maintain reaction temperature.
• Typical applications: chemical synthesis, pharmaceutical reactions, dyeing/pigment processing, paints and coatings, and other temperature‑sensitive processes.

Precautions and maintenance highlights

• Isolate the reactor completely from process lines during maintenance using certified blind plates; verify isolation integrity before hot work.
• Perform hot work only after a formal hot‑work risk assessment and with valid permits; ensure ventilation and gas‑free conditions.
• Never use flammable gases for pressurization or testing unless specific safety measures and monitoring are in place.
• Enforce correct valve operation sequences and provide operator training and clear procedures to prevent backflow and trapped pressure.
• Monitor process parameters (pressure, temperature, oxygen levels) continuously and alarm on deviations.
• Protect pumps and compressors from dry running and negative suction; ensure timely condensate removal and level control.

Technical specifications

• Material: stainless steel vessel and wetted parts.
• Type: jacketed reactor / reaction kettle with stirring/agitation device.
• Primary components: reactor body, internal agitator, jacket (interlayer), manhole, valves, flanges and seals.
• Jacket role: heating/cooling via circulating medium (thermal oil, steam, water, glycol, as specified).
• Control: requires level, temperature and pressure monitoring and interlocks for safe operation.
• Typical industries: chemical, pharmaceutical, dye/pigment, paint and coatings, specialty process industries.
• Maintenance focus: isolation (blind plates), hot‑work permits, valve/pump sequencing, condensate drainage, and parameter monitoring.
