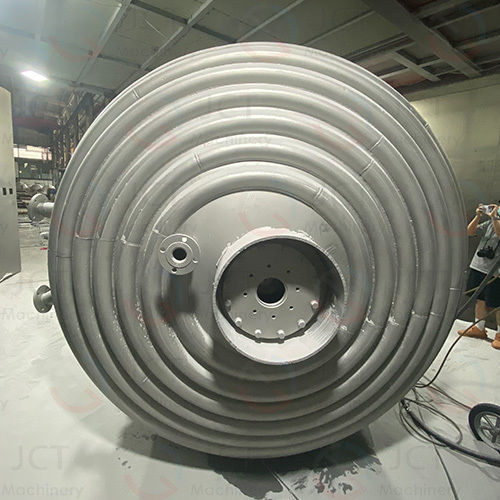

Stirred-tank reactor

batchcontinuousfor cosmetics

Product Overview
JCT Machinery supplies industrial reactors including stainless steel reactors, jacketed (double-jacket) reactors and coil/pipe coil reactors for applications in resins, coatings, adhesives, cosmetics, pharmaceuticals and food processing. Reactors perform mixing, heating, chemical reaction and cooling in continuous or batch production.

Reactor Parameters
Equipment volume: 200 L – 80,000 L (typical working volume 80–90%)
Working temperature: -20 °C to +300 °C
Working pressure: -0.1 MPa (vacuum) to +1.6 MPa
Materials: SS304 / SS316, Q235-B carbon steel
Mixing power: 0.75 kW – 160 kW
Mixing speed: low speed 0–300 rpm; high-speed dispersion 0–1000–1500–2800 rpm (frequency converter available)
Mixing types: inclined propeller, anchor, anchor frame, spiral ribbon, turbine, disperser disc, combined types
Sealing: mechanical seal, packing seal
Heating/cooling: outer jacket, external half-pipe (coil), internal coil

Reactor Structure

• Reaction vessel (kettle)
• Agitator and drive system
• Heating/cooling circuit
• Sealing assembly
• Control cabinet (automatic temperature, pressure and speed control)

How to choose a reactor
Adhesives — Recommended: cooling jacket, high-shear dispersion system. Suitable for high-viscosity formulations.
Resins — Recommended: external coil heating, high-temperature and pressure design. Improves polymerization efficiency.
Coatings — Recommended: precise temperature control, automatic discharge valve. Ensures color stability and consistent viscosity.
Pharmaceutical & Food — Recommended: SS304/316 with mirror polish. Meets hygiene and cleanability requirements.

Why choose JCT's reactor?

• In-house factory offering full-process fabrication: welding, polishing, sand-blasting and pressure testing
• Experienced automation engineers design control systems for temperature, pressure and mixing
• On-site installation and commissioning services available
• Compatibility with sigma mixers and dispersers to supply complete production lines

Technical specifications

• Volume range: 200 L – 80,000 L (working volume 80–90%)
• Temperature range: -20 °C to +300 °C
• Pressure range: -0.1 MPa (vacuum) to +1.6 MPa
• Contact materials: SS304 / SS316 or Q235-B carbon steel
• Mixing motor power: 0.75–160 kW
• Mixing speeds: low 0–300 rpm; high up to 2800 rpm (VFD control)
• Available agitator types: inclined propeller, anchor, ribbon, turbine, disperser disc, combined
• Sealing options: mechanical seal or packing
• Heating/cooling options: jacket, external half-pipe coil, internal coil
