Diesel engine CURSOR16 TE1W
6-cylinderturbochargedcommon rail

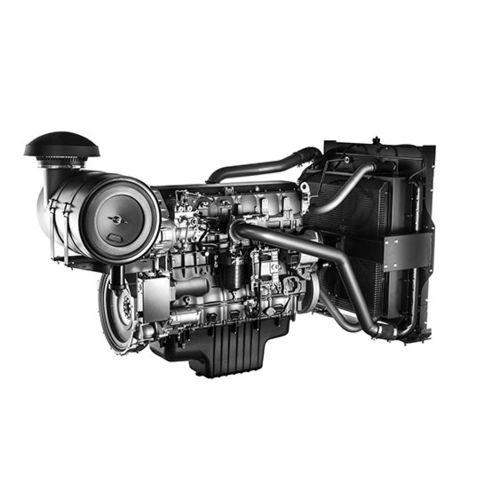

Diesel engine - CURSOR16 TE1W - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail
Diesel engine - CURSOR16 TE1W - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail
Diesel engine - CURSOR16 TE1W - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 2
Diesel engine - CURSOR16 TE1W - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 3
Diesel engine - CURSOR16 TE1W - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 4
Diesel engine - CURSOR16 TE1W - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 5
Diesel engine - CURSOR16 TE1W - FPT Industrial S.p.A. - 6-cylinder / turbocharged / common rail - image - 6
Add to favorites
Compare this product

Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbocharged, common rail, in-line
Product applications
for generator sets, power generation, off-road
Other characteristics
4-stroke, compact, liquid-cooled
Power

505 kW, 523 kW, 557 kW, 578 kW
(686.61 hp, 711.08 hp, 757.31 hp, 785.86 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.778 rad.min-1, 11,309.7336 rad.min-1)

Displacement

6 l
(1.585 gal)

Length

2,300 mm
(90.6 in)

Width

1,105 mm
(43.5 in)

Height

1,600 mm
(63 in)

Description

Top performance in power and load response Reduced maintenance requirements and operating costs Seamless switchability for enhanced cross-region flexibility The Cursor 16 is equipped with an advanced Common Rail injection system and a G-Drive layout, offering a ready-to-market solution. Designed for unregulated markets, it delivers outstanding performance with reliable power delivery, excellent load response, and low fluid consumption across all operating conditions. With 50/60 Hz frequency switching capability, the engine simplifies inventory management for customers. Its industry-leading 600-hour service interval enhances uptime and reduces maintenance demands. Top performance in terms of load response and power with low fluid consumption in all conditions. Engine with 4 valves per cylinder, common rail injection system and turbocharger. Fully packaged G-Drive with pre-assembled cooling pack and air cleaner. Low TCO and maximized uptime thanks to best-in-class service interval (600-hour). Switchable between 50 Hz to 60 Hz for efficient stock management.
