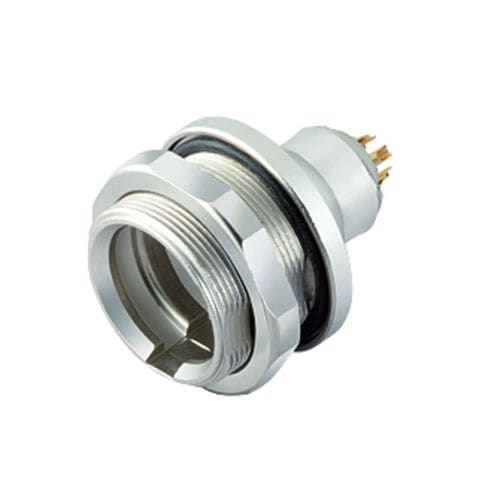

Data connector 430 series DINcircularfemale
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN
- Shape
- circular
- Connection type
- female, push-pull
- Material
- polyamide, PBT
- Protection class
- IP67
- Other characteristics
- subminiature, panel-mount
- Primary current
1 A, 3 A, 4 A
- Voltage
125 V
Description
Push-Pull Female panel mount connector, Contacts: 3, unshielded, solder, IP67, front fastened
Connector design - Female panel mount connector
Version - Connector socket straight
Connector locking system - Push-Pull
Termination - solder
Degree of protection - IP67
Cross-sectional area - 0.25 mm² / AWG 24
Temperature range from/to - -40 °C / 85 °C
Mechanical operation - > 500 Mating cycles
Weight (g) - 10.14
Customs tariff number - 85369010
