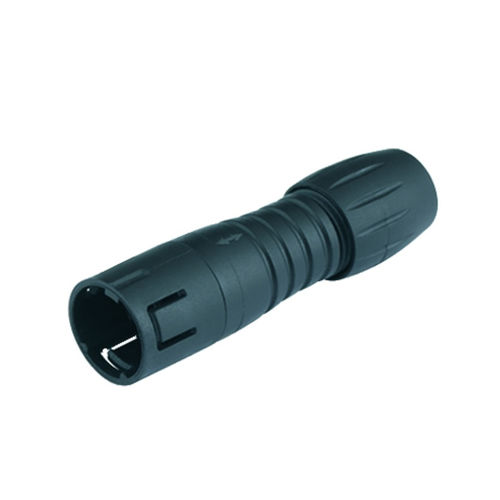

Male connector 620 serieselectrical power supplycircularsnap-on
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- circular
- Connection type
- male, snap-on
- Material
- polyamide
- Protection class
- IP67
- Other characteristics
- subminiature
- Primary current
1 A, 2 A, 2.5 A, 3 A
- Voltage
63 V, 125 V
- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
Connector design - Male cable connector
Version - Connector pin straight
Connector locking system - snap-in
Termination - solder
Degree of protection - IP67
Cross-sectional area - max. 0.25 mm² / AWG 24
Cable outlet - 3.5-5.0 mm
Mechanical operation - > 500 Mating cycles
Weight (g) - 3.24
Customs tariff number - 85369010
Country of Origin - DE
