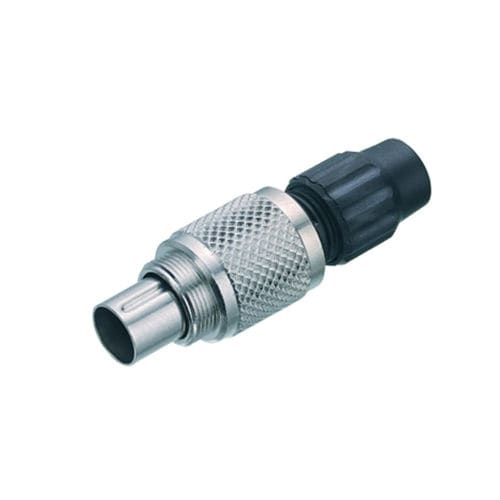

RF connector 711 seriescircularmalepolyamide
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Shape
- circular
- Connection type
- male
- Material
- polyamide
- Protection class
- IP40
- Other characteristics
- subminiature, M9
- Primary current
4 A
- Voltage
125 V
Description
M9 IP40 Male cable connector, Contacts: 2, 3.0-4.0 mm, unshielded, solder, IP40
Connector design - Male cable connector
Version - Connector pin straight
Connector locking system - screw
Termination - solder
Degree of protection - IP40
Cross-sectional area - max. 0.25 mm² / AWG 24
Cable outlet - 3.0-4.0 mm
Temperature range from/to - -40 °C / 85 °C
Tightening torque pressing screw - 0.2-0.3 Nm
Mechanical operation - > 500 Mating cycles
Weight (g) - 5.48
Customs tariff number - 85369010
