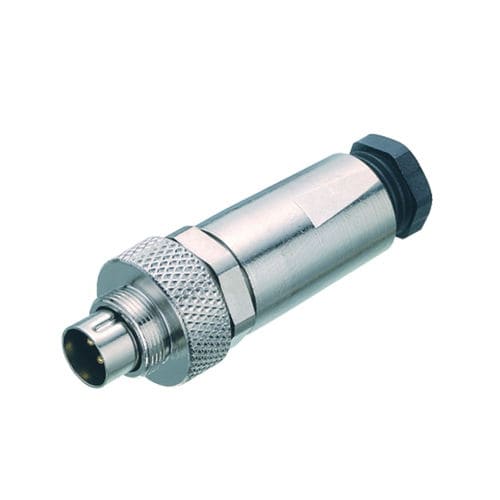

Data connector 712 series
DINcircularmale

data connector
data connector
Add to favorites
Compare this product

Go to the Franz Binder GmbH + Co. Elektrische Bauelemente KG website for more information

Characteristics

Type
data
Format
DIN
Shape
circular
Connection type
male
Material
PBT
Protection class
IP67
Other characteristics
subminiature, M9, EMC-shielded
Primary current

1 A, 3 A, 4 A

Voltage

125 V

Description

M9 IP67 Male cable connector, Contacts: 2, 3.5-5.0 mm, shieldable, solder, IP67 Connector design - Male cable connector Version - Connector pin straight Connector locking system - screw Termination - solder Degree of protection - IP67 Cross-sectional area - max. 0.25 mm² / AWG 24 Cable outlet - 3.5-5.0 mm Temperature range from/to - -40 °C / 85 °C Tightening torque locking - 0.8-1.0 Nm Tightening torque sleeve - 0.2 Nm Tightening torque pressing screw - 0.3-0.4 Nm Mechanical operation - > 500 Mating cycles Weight (g) - 18.07 Customs tariff number - 85369010
