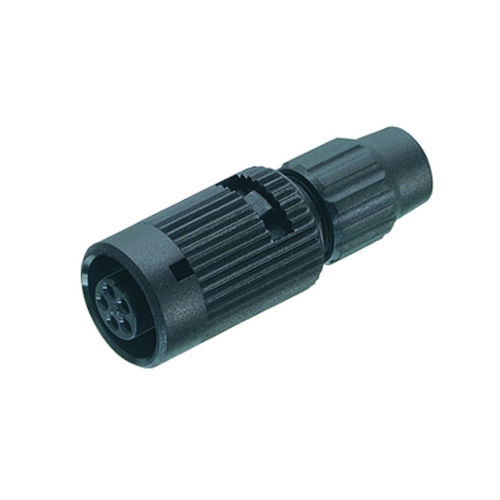

Data connector 710 serieselectrical power supplycircularfemale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- female, bayonet
- Material
- polyamide
- Protection class
- IP40
- Other characteristics
- subminiature
- Primary current
1 A, 3 A, 4 A
- Voltage
125 V
Description
Connector locking systemBayonet
Terminationsolder
Wire gauge (mm)0,25 mm²
Wire gauge (AWG)24
Cable outlet3,0 - 4,0 mm
Degree of protectionIP40
Mechanical operation> 500 Mating cycles
Upper limit temperature85 °C
Lower limit temperature-40 °C
Rated impulse voltage1500 V
Pollution degree1
Overvoltage categoryII
Insulating material groupIII
Volume resistivity≤ 3 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuSn (bronze)
Contact platingAu (gold)
Contact body materialPA (UL 94 V-0)
Customs tariff number85369010
Weight (g)2.461
