Hot air drying system AF TV

centrifugalstainless steel

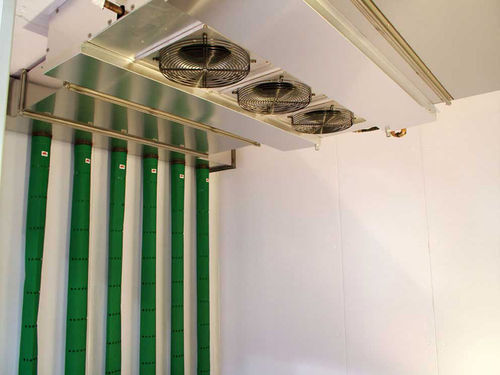

AF TV is a drying system for different types of cheese. The system is completely designed to be installed in chambers already owned by customers in order to guarantee correct circulation of air through standard-sized trolleys. Its position on the ceiling leaves all the space inside the chamber free, allowing for easier product handling and storage. Air Treatment Unit: The ATU is fastened to the ceiling of the chamber and is complete with centrifugal fans and coils for thermal exchange. Hot air is obtained by means of pipe circuits in which hot water, which comes from an external boiler, passes. Ventilation systems: A. Forced ventilation obtained through the Air Treatment Unit; B. Stainless steel airflow ducts; C. Cloth diffuser tubes, which descend along the side walls of the chamber and are provided with holes positioned at the height of the trolley surfaces, conveying homogeneous air onto the product. Electronic control: The control system is composed of a power panel controlled by a user terminal with a 4X20 character LCD screen. By following the simple instructions provided by the software developed by the company, the user can control the system, set the processing parameters (set-point and differential) and all other advanced functions (air exchange, work pauses, etc.).
