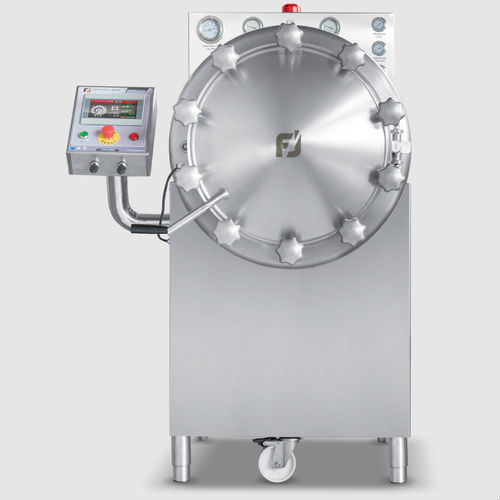

Process sterilizer STERY2000
steamsuperheated steamautomatic

process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
Add to favorites
Compare this product


Characteristics

Laboratory/process
process
Sterilization method
steam, superheated steam
Other characteristics
automatic, horizontal, high-capacity, compact, front-loading, high-pressure
Applications
for the food industry, for liquids
Temperature range

135 °C (275 °F)

Min.: 70 °C (158 °F)

Max.: 135 °C (275 °F)

Capacity

370 l (97.7 gal)

Description

1. steam sterilization with parameter setting F0-F100-F71 Ideal for sterilization of packaged products in containers which can sustain the high temperatures such as glass, plastic and cans. It is a COMPACT and completely INDEPENDENT plant. > SYSTEM FOR PASTERIZATION/STERILIZATION (HACCP standards) UP TO 135°C. > AUTOMATIC SYSTEM for the COMPENSATION of pressure so as to avoid accidental opening of containers and permit the use of any material resistant to high temperatures.. > AUTOMATION SYSTEM by PLC and touch screen graphic display 7”; FJ SOFTWARE for complete control of the working process; integrated DATA LOGGER FJ for a real-time calculation on display of the value F0, F100 and F71 concerning sterilization; storage of working cycles and transer on PEN-DRIVE of recorded data via USB interface; storage of working cycles performed up to 7 days; Dedicated SOFTWARE FJLOGGER for reading, storing and printing the entire report processing on any computer. > REMOTE MAINTENANCE and CONTROL via smartphone, tablet or PC (optional). 1. Volume of the tank 370 liters 2. Maximum temperature into sterilization chamber 135°C 3. Temperature in the heart of product during sterilization up to 121°C 4. Capacity per cycle of glass containers of 330gr, n. 250 5. CE certification 6. P.E.D. 97/23 CE certification 7. Electrical power supply: 380V three-phase

VIDEO

Catalogs

catalog 2019
catalog 2019
36 Pages
