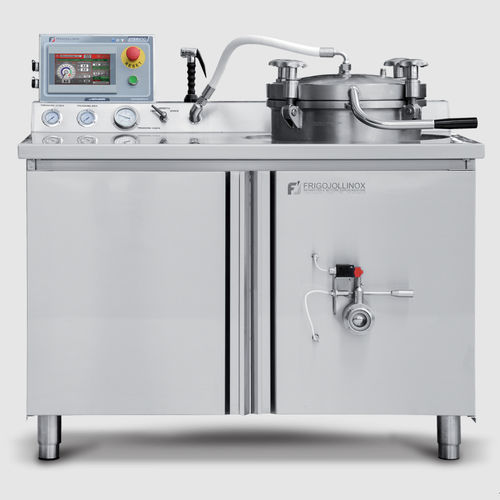

Process sterilizer STERY50
steamsuperheated watersuperheated steam

process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
process sterilizer
Add to favorites
Compare this product


Characteristics

Laboratory/process
process
Sterilization method
steam, superheated water, superheated steam
Other characteristics
automatic, vertical, top-loading
Applications
for the food industry, for liquids
Capacity

70 l (18.5 gal)

Temperature range

Min.: 70 °C (158 °F)

Max.: 135 °C (275 °F)

135 °C (275 °F)

Description

1. cook / scald under pressure or not, in water or other liquid 2. steam cooking 3. steam sterilization with parameter setting F0-F100-F71 4. pasteurization/sterilization in water with parameter setting F100-F71 Ideal for sterilization of packaged products in containers which can sustain the high temperatures such as glass, plastic and cans. > SYSTEM FOR PASTERIZATION/STERILIZATION (HACCP standards) UP TO 135°C. > AUTOMATIC SYSTEM for the COMPENSATION of pressure so as to avoid accidental opening of containers and permit the use of any material resistant to high temperatures.. > AUTOMATION SYSTEM by PLC and touch screen graphic display 7”; FJ SOFTWARE for complete control of the working process; integrated DATA LOGGER FJ for a real-time calculation on display of the value F0, F100 and F71 concerning sterilization; storage of working cycles and transer on PEN-DRIVE of recorded data via USB interface; storage of working cycles performed up to 7 days; Dedicated SOFTWARE FJLOGGER for reading, storing and printing the entire report processing on any computer. > REMOTE MAINTENANCE and CONTROL via smartphone, tablet or PC (optional). 1. Volume of the tank 70 liters 2. Maximum temperature into sterilization chamber 135°C 3. Temperature in the heart of product during sterilization up to 121°C 4. Capacity per cycle of glass containers of 330gr, n.95 5. CE certification 6. P.E.D. 97/23 CE certification 7. Supply: LPG, methane, electrical power 380V three-phase 8. Overall dimensions 120*85*125
