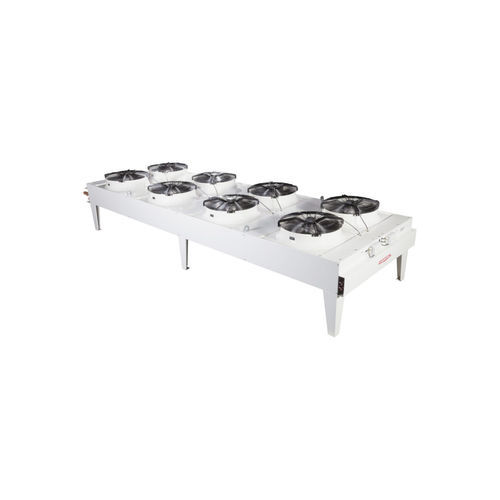

Liquid cooler AL series

industrialcompact

Dry coolers with axial fan motors of diameter 630 and 800mm. They are manufactured in two version according to the fan turning speed, ALN (normal) and ALS (silent). The fan motors have two speed, according to delta/star connection, that makes a total of four turning possibilities: ALN series (normal) Connection D :1.300 rpm (900 rpm for models with diameter 800) Connection Y :1.000 rpm (680 rpm for models with diameter 800) ALS series (silent) Connection D : 680 rpm (450 rpm for models with diameter 800) Connection Y : 550 rpm (350 rpm for models with diameter 800) CHARACTERISTICS They can be used to cool all kind of liquids, generally water or water-glycol coming from water condensing units but also for the cooling of oil used for the lubrication of cold installations compressors. Casing in galvanized and coated steel with a white polyester RAL-9002 resin of high corrosion resistance. Floating coil system that avoids any kind of contact between the copper tubes and the supporting end plates, assuring a long life for the condenser without leaks. Axial fan motor with external rotor, three phase 400V / 50Hz and two speed. With IP-54 protection and with thermal protection (Thermocontact). SPECIFIC OPTIONS OF THIS RANGE Legs for anchoring to the floor in horizontal position Fan motors wired to a external junction box. Fan motors type EC with electronic speed control with very high energy efficiency. Liquid pipe connections by means of flanges. Water spray system over the finned coil to improve the efficiency (see PA range)
