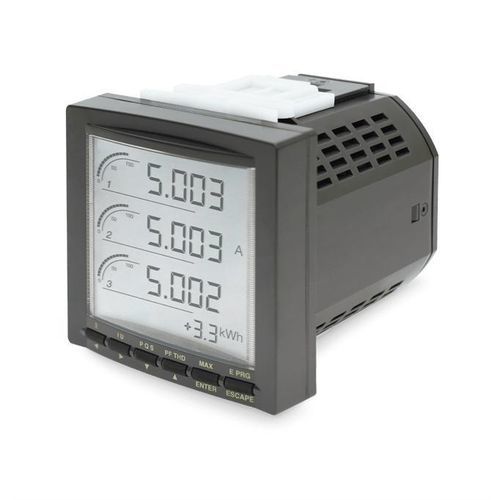

Single-phase electric energy meter 53U

three-phasepanel-mountRS-485

53U ELECTRICAL ENERGY METER
TAKE CONTROL OF YOUR ELECTRICAL CONSUMPTION WITH A PRECISE, VERSATILE AND COMMUNICATING METER

The Fuji Electric 53U electrical energy meter is designed to measure, display and transmit consumption or production data on single-phase and three-phase networks. It supports efficient energy monitoring for industrial facilities, buildings, workshops and machines.

53U ELECTRICAL ENERGY METER FEATURES

• Communicating single-phase and three-phase meter
• 96 x 96 mm panel mounting
• RS485 Modbus communication
• Measurement of voltage, current, active, reactive and apparent power
• Active and reactive energy measurement
• Backlit LCD display with direct reading
• 480 V AC / 1 A or 5 A input
• Universal power supply: 100-240 V AC / 110-240 V DC
• IP50 front panel
• Optional analog output

APPLICATIONS
The 53U is used for measuring, monitoring and managing energy on low-voltage and medium-voltage electrical networks in buildings, workshops, machines, charging stations and photovoltaic installations.

BENEFITS

• Optimized electrical consumption management
• Easy communication with supervision systems
• Simple and fast installation
• Excellent readability with a large backlit screen
• Direct reading of measurements and energy metering
• Suitable for single-phase and three-phase networks
• Flexible measurement variable configuration
