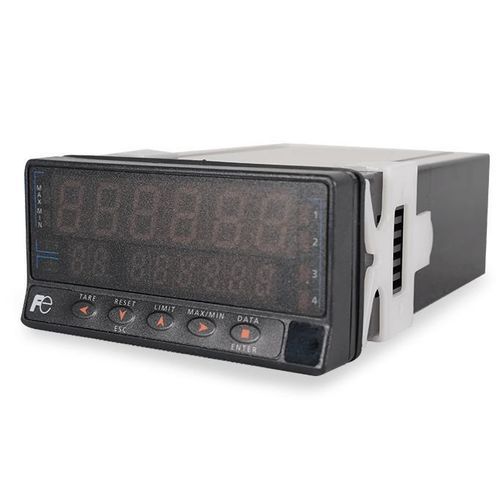

DUAL-DISPLAY TOTALIZING DIGITAL INDICATOR – FD9000 SERIES
PRECISE, HIGH-PERFORMANCE VISUALIZATION FOR MONITORING YOUR INDUSTRIAL PROCESSES

The FD9000 Series totalizing digital indicator is designed for industrial process monitoring and measurement, with direct display of engineering units. Fully programmable, it integrates easily into applications requiring clear, reliable, and scalable process data visualization.

FEATURES OF THE FD9000 SERIES TOTALIZING DIGITAL INDICATOR

• High-visibility dual LED display
• Display resolution from -99999 to 99999
• 6-digit display with 14 mm red LED
• Programmable linearization from 1 to 29 segments
• Signal filtering from 0 to 9 levels
• 36 preprogrammed functions controlled by 4 logic inputs
• Signal scaling by learning mode
• 115/230 Vac 50/60 Hz or 24/48 Vac 50/60 Hz power supply
• Optional alarm relay outputs, 4-20 mA / 0-10 V analog retransmission output, RS485 Modbus communication
• 1/8 DIN format, 96 × 48 × 120 mm

APPLICATIONS
The FD9000 is suitable for industrial applications requiring dynamic, interactive, and reliable display of process values and on-site measurement monitoring.

ADVANTAGES

• Clear reading with high-visibility dual display
• High configuration flexibility to match process requirements
• Easy integration into many industrial system architectures
• Simplified operation with direct access to functions and setpoints
• Robust solution for industrial environments
• Optional communication and outputs for better system integration
