LED display FD6000

colornumeric5-digit

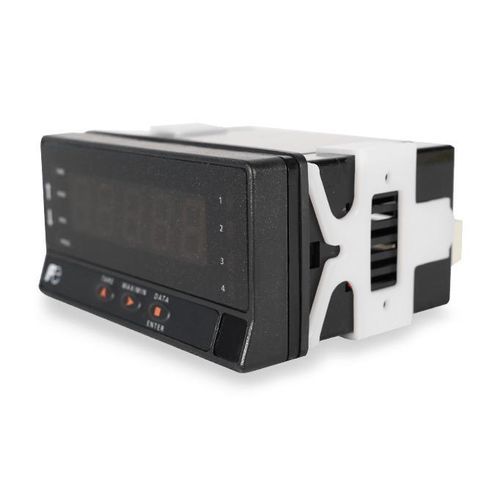

FD6000 MULTIFUNCTION THREE-COLOR DIGITAL DISPLAY
MONITOR YOUR INDUSTRIAL MEASUREMENTS WITH CLARITY AND PRECISION

The FD6000 multifunction three-color digital display is designed to provide clear on-site visualization of process values. Programmable and versatile, it supports industrial measurement monitoring with a high-visibility LED display and flexible configuration.

FD6000 MULTIFUNCTION THREE-COLOR DIGITAL DISPLAY FEATURES

• Programmable three-color LED display: green, amber, red
• Display range: -19999 to 19999, 5 digits
• Universal inputs: voltage, current, thermocouple, RTD, potentiometer
• Counter, frequency meter, tachometer and timer functions
• Front-panel or free PC software programming
• 10-segment linearization and front or remote tare function
• Compact 1/8 DIN format: 96 × 48 × 60 mm
• Options: relay outputs, 4-20 mA retransmission, RS485 MODBUS

APPLICATIONS

The FD6000 is used for dynamic process value display, on-site information monitoring and industrial equipment supervision.

BENEFITS

• Fast reading with high-visibility LED display
• Display color can be assigned to a physical value or alarm threshold
• Simple configuration by keypad or PC software
• Wide input signal compatibility
• Easy integration into control panels
• Enhanced security with full or partial programming lock
