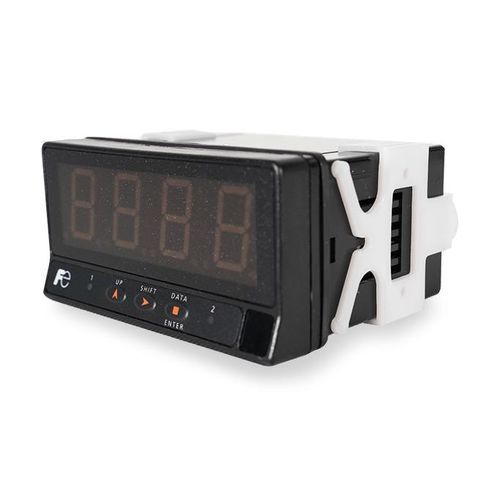

LED display FD3100monochromenumeric4-digit
Add to favorites
Compare this product
Characteristics
- Screen type
- LED
- Type
- numeric, monochrome
- Format
- 4-digit
- Applications
- industrial, temperature measurement, Pt100, current measurement, for thermocouples, voltage measurement, for potentiometers
- Structure
- large-format
- Configuration/mounting
- indoor, panel-mount
- Protection level
- IP65
- Other characteristics
- programmable, cost-effective, stand-alone
- Width
96 mm
(3.7795 in)- Height
48 mm
(1.8898 in)- Depth
60 mm
(2.36 in)
Description
FD3000 LARGE-FORMAT DIGITAL DISPLAY FOR CLEAR INDUSTRIAL MEASUREMENT READOUT
MONITOR YOUR PROCESS DATA QUICKLY, EVEN IN DEMANDING INDUSTRIAL ENVIRONMENTS
The FD3000 Series 4-digit large-format digital display provides simple on-site visualization of measurement values. Compact, front-panel programmable and designed for industrial cabinets, it makes process monitoring easier.
FD3000 SERIES 4-DIGIT LARGE-FORMAT DIGITAL DISPLAY FEATURES
APPLICATIONS
The FD3000 is suitable for local process measurement display, including temperature, level, current, voltage, frequency and speed.
BENEFITS
MONITOR YOUR PROCESS DATA QUICKLY, EVEN IN DEMANDING INDUSTRIAL ENVIRONMENTS
The FD3000 Series 4-digit large-format digital display provides simple on-site visualization of measurement values. Compact, front-panel programmable and designed for industrial cabinets, it makes process monitoring easier.
FD3000 SERIES 4-DIGIT LARGE-FORMAT DIGITAL DISPLAY FEATURES
- 4-digit red LED display with 20 mm character height
- High-visibility 10,000-count digital indicator
- 1/8 DIN format: 96 × 48 × 60 mm
- Available inputs: voltage, current, Pt100, Pt1000, thermocouple, potentiometer, frequency meter, tachometer
- Power supply: 115 to 230 Vac, 12 Vdc or 24 Vdc
- Front-panel keyboard programming
- IP65 protection for display and keypad
- Optional 2 SPDT 8 A relay outputs for high and low alarms
APPLICATIONS
The FD3000 is suitable for local process measurement display, including temperature, level, current, voltage, frequency and speed.
BENEFITS
- Clear and fast reading of measured values
- Simple front-panel cabinet installation
- Intuitive on-site configuration
- Broad compatibility with industrial signals
- Cost-effective solution for process data display
