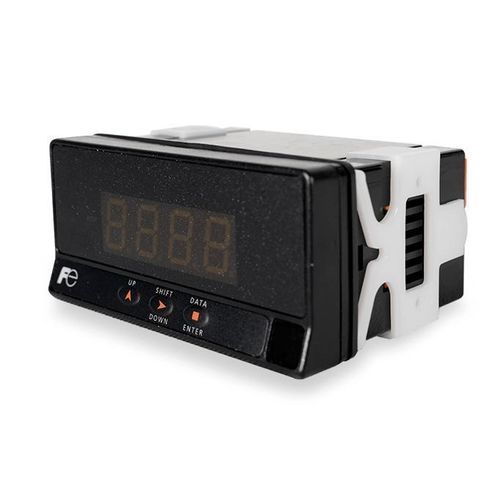

LED display FD2000numeric4-digitfor tank level measurement
Add to favorites
Compare this product
Characteristics
- Screen type
- LED
- Type
- numeric
- Format
- 4-digit
- Applications
- industrial, temperature measurement, for sensors, for control panels, for tank level measurement, instrumentation
- Structure
- compact
- Configuration/mounting
- panel-mount, built-in
- Protection level
- IP65
- Other characteristics
- programmable, cost-effective, high refresh rate
- Length
96 mm
(3.78 in)- Width
48 mm
(1.8898 in)- Height
60 mm
(2.3622 in)
Description
FD2000 SERIES ECONOMICAL DIGITAL DISPLAY
MONITOR YOUR INDUSTRIAL MEASUREMENTS WITH SIMPLICITY AND RELIABILITY
The FD2000 digital display is a cost-effective solution for local process value reading. Front-panel programmable, it adapts to key industrial measurements and supports clear on-site monitoring.
FD2000 DIGITAL DISPLAY FEATURES
APPLICATIONS
The FD2000 is designed for dynamic display of process, temperature, level and other industrial values on panels and control cabinets.
BENEFITS
MONITOR YOUR INDUSTRIAL MEASUREMENTS WITH SIMPLICITY AND RELIABILITY
The FD2000 digital display is a cost-effective solution for local process value reading. Front-panel programmable, it adapts to key industrial measurements and supports clear on-site monitoring.
FD2000 DIGITAL DISPLAY FEATURES
- Process inputs: mA, V, Pt100 and thermocouple
- 4-digit white LED display, 14 mm height
- 16-bit resolution
- Sigma-Delta conversion, 20 measurements per second
- 20 to 265 VAC/VDC power supply
- Relay output and 4-20 mA analog output
- IP65 front protection
- Dimensions: 96 × 48 × 60 mm
APPLICATIONS
The FD2000 is designed for dynamic display of process, temperature, level and other industrial values on panels and control cabinets.
BENEFITS
- Economical solution
- Simple front-panel programming
- Two high and low alarms
- 4-20 mA analog output
- 24 VDC sensor power supply
- Clear on-site reading
- Compact cabinet-mount format
