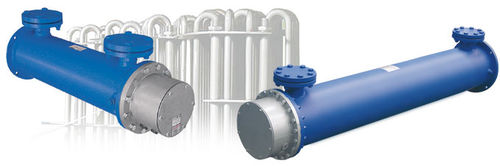

Oil preheater 3 - 100 kW, max. 200 °C electric
Add to favorites
Compare this product
Characteristics
- Heated fluid
- oil
- Heating method
- electric
Description
Applications
Heating of oil, emulsions and fluids (not easily flammable) by electric current, especially concerning machines and plants in external sphere.
Technical data
Heat duty 3 - 100 kW
Max. operating pressure ( 9kW) 25 / 16 bar
Max. final temperature 80°C
High temperature unit: Max. final temperature 200°C
Design / material
Heating element with bent heating rods (like a U-tube bundle)
Shell: steel
Regularly equipped with thermostat
