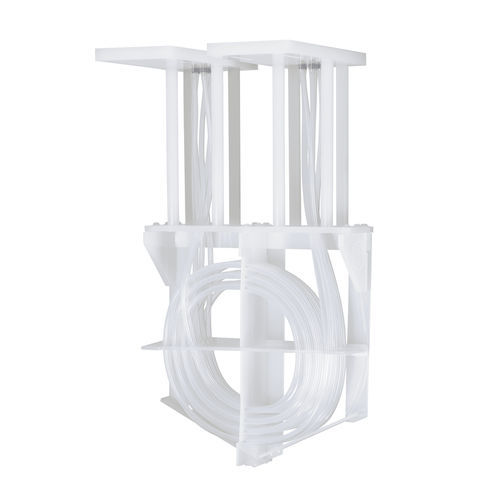

Wound tube heat exchanger SYNOTHERM®

liquid/liquidPFAhigh-temperature

Product overview
The SYNOTHERM® polymer heat exchanger delivers an efficient solution for indirect heating or cooling of liquids when metallic exchangers are unsuitable. Its compact, fully customizable design enables installation in constrained spaces while meeting stringent industrial process requirements.

Technical specifications

• Customized design: Manufactured to fit installation constraints and process parameters.
• High-performance polymer materials: PFA tubing wound on a reinforcement to provide chemical resistance and long-term durability.
• Optimized flow management: Integrated spacers between tubes to ensure controlled flow distribution and effective heat transfer.
• Integrated mechanical protection: Protective plate incorporated for improved mechanical resilience.

Key benefits

• Adaptability: Suitable where metallic plate exchangers are not compatible with process fluids.
• Space-saving: Compact footprint for integration in confined layouts.
• Long service life: Materials selected for resistance to chemical, thermal and mechanical stresses.
• Tailored configuration: Dimensions, connections and number of tubes configured to customer requirements.

Main applications

• Chemical and surface treatment processes: Heating or cooling of corrosive fluids incompatible with metals.
• Constrained production lines: Installations with strict chemical compatibility and limited space.
• General industry: Any application needing indirect thermal control under aggressive conditions.

Safety and compliance

• Compliant with CE and PED standards.

Additional resources
Installation manual for the SYNOTHERM® polymer heat exchanger is available (PDF referenced on the product page).

Technical characteristics / specifications

• Product family: SYNOTHERM® polymer heat exchanger
• Function: Indirect heating or cooling of liquids, suitable for corrosive fluids incompatible with metals
• Materials: PFA tubing wound on reinforcement
• Mechanical protection: Integrated protective plate
• Hydraulic design: Spacers integrated between tubes for optimized flow and heat transfer
• Customization: Dimensions, connections and tube count made to customer specification
• Design benefit: Compact footprint for space-saving installation
• Standards: CE and PED compliance
