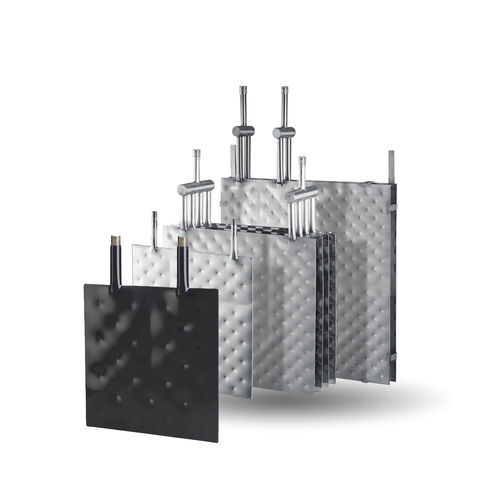

Plate heat exchanger SYNOTHERM®

liquid/liquidtitaniumstainless steel

Product overview
Galvatek’s SYNOTHERM® plate heat exchangers provide a compact, high-performance solution for indirect heating or cooling of process liquids in industrial environments. Designed for integration into galvanizing lines and tanks with limited space, they deliver thermal performance comparable to tubular exchangers while optimizing footprint and offering high resistance to process fluids.

Technical Specifications

• Tailor-made design: Each SYNOTHERM® exchanger is engineered to customer specifications for seamless integration into existing processes.
• Resistant materials: Construction options include stainless steel (multiple grades), titanium or polymer-coated finishes to withstand hot and cold process fluids.
• Optimum heat distribution: Plate configuration ensures uniform energy distribution and enhanced heat transfer.
• Increased mechanical stability: Rigid internal structure reduces risk of mechanical damage and stress on heating elements.
• Hydrodynamic safety: Hydraulic design minimises pressure loss and prevents sudden pressure rises for stable operation.
• Integrated support and suspension: Fastening systems enable safe, rapid installation without major structural modifications.

Key Benefits

• Space savings: More compact than tubular exchangers, facilitating integration in confined areas.
• Suitable for demanding processes: Designed for galvanizing lines, process tanks and other industrial applications requiring durable equipment.
• Reliability and long life: Material options ensure consistent long-term performance and reduced maintenance needs.
• Easy installation: Connections can be positioned according to site constraints to simplify commissioning.

Main Applications

• Galvanizing lines: Heating or cooling of electroplating and electrolysis baths.
• Chemical surface treatment: Thermal control of pickling, rinsing and coating tanks.
• Industry, pharmaceuticals and chemicals: Temperature control in liquid processing.
• General industry: Any application requiring precise, stable thermal control.

Safety and Compliance

• CE and PED compliant
• Materials and assemblies controlled with systematic quality inspections

Associated documents
Technical data sheet and configuration form available in product documentation provided by the manufacturer.

Technical data / specifications

• Series / model name: SYNOTHERM®
• Design: Custom, tailored to process and site constraints
• Materials: Stainless steel (multiple grades), titanium, polymer-coated options
• Thermal performance: Plate configuration providing thermal efficiency comparable to tubular exchangers
• Mechanical: Rigid internal structure for improved mechanical stability
• Hydraulic: Designed to minimise pressure loss and prevent sudden pressure rises
• Installation: Integrated supports and suspension; connections positionable per site requirements
• Compliance: CE and PED
• Applications: Galvanizing, surface chemical treatment, chemical and pharmaceutical industry, general industry
