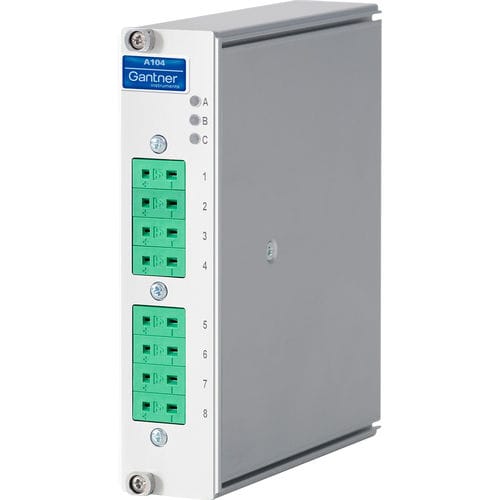

Analog I O module Q.brixx XE A104 TCK
EtherCAT8 analog inputsbuilt-in

Add to favorites

Compare this product

Go to the Gantner Instruments website for more information

Characteristics

Signal type: analog
Bus: EtherCAT
Number of inputs/outputs: 8 analog inputs
Mounting: built-in

Description

8 analog input channels thermocouple (type B / E / J / K / L / N / R / S / T / U), voltage (±80 mV) High-accuracy digitization 24-bit ADC, 100 Hz sample rate per channel, 50/60 Hz mains rejection Automatic linearization correction optimal position of the interpolation points adjusted to the input range Simplified wiring direct connectivity with mini-TC plugs, built-in cold junction compensation Open thermocouple detection detect broken wire, loose connection or thermocouple burnout 3-Way galvanic isolation 100 VDC channel to channel, 500 VDC channel to power supply and bank Electromagnetic compatibility (EMC) according to IEC 61000-4 and EN 55011

Catalogs

No catalogs are available for this product.

See all of Gantner Instruments‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

Sensor+Test 2024

11-13 Jun 2024 Nürnberg (Germany)

More information
