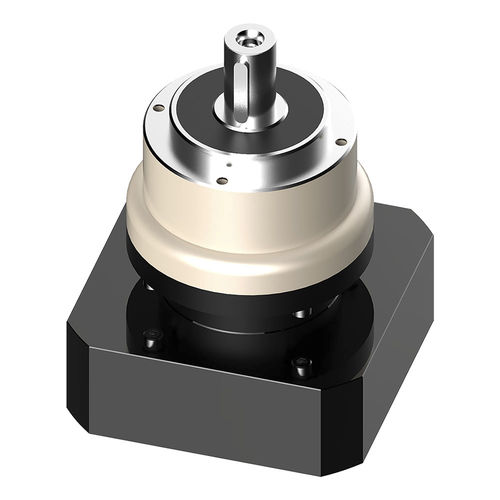

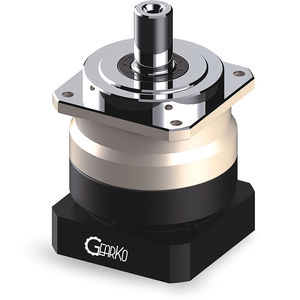

Planetary gear reducer TE seriescoaxialright anglesolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial, right angle
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm
- Performance
- precision
- Applications
- shaft
- Rotational speed
Min.: 2,000 rpm
(12,566.37 rad.min-1)Max.: 10,000 rpm
(62,831.85 rad.min-1)- Backlash
Min.: 0.02 °
Max.: 0.12 °
Description
High precision model with additional frame shape option
High rigidity and output torque
Easy mount to any motor
Electroless nickel surface plating for anti-corrosion
Single-piece design for output shaft & planet carrier with robust bearings
Single-piece design for output shaft & planet carrier with robust bearings
Single-piece design for ring gear & housing
Single-piece design for sun gear & input shaft ensure high concentricity
Full complement solid uncaged needle roller bearings for planetary gears
All precision helical gearing for low noise and high precision
Extreme low vibration and lifelong maintenance-free
