Planetary gear reducer TC series
helical gearcoaxialsolid-shaft

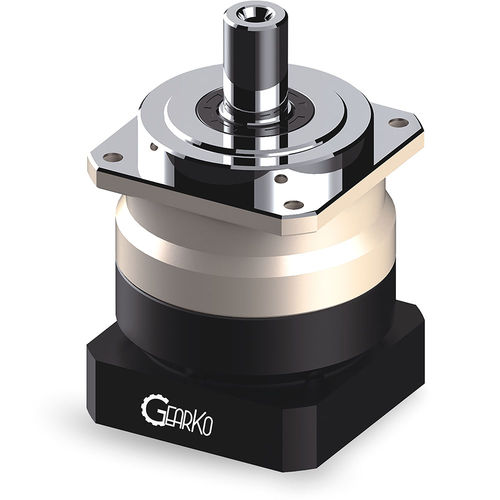

Planetary gear reducer - TC series - GEARKO - helical gear / coaxial / solid-shaft
Planetary gear reducer - TC series - GEARKO - helical gear / coaxial / solid-shaft
Planetary gear reducer - TC series - GEARKO - helical gear / coaxial / solid-shaft - image - 2
Add to favorites
Compare this product

Characteristics

Type
planetary, helical gear
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm
Configuration
modular
Performance
precision, maintenance-free
Applications
shaft
Rotational speed

Min.: 2,000 rpm
(12,566.3706 rad.min-1)

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Backlash

Min.: 0.05 °

Max.: 0.12 °

Description

Modular design with optimized performance Easy mount to any motor Single-piece design for output shaft & planet carrier Single-piece design for ring gear & housing Full complement solid uncaged needle roller bearings for planetary gears All precision helical gearing for low noise and high precision Extreme low vibration and lifelong maintenance-free
