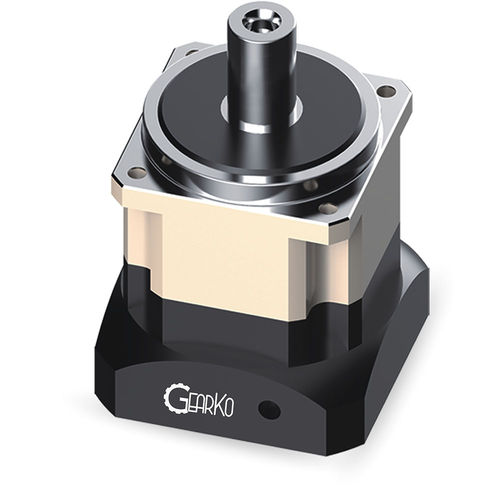

Planetary gear reducer TB serieshelical gearcoaxialright angle
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial, right angle
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, 10 - 20 Nm
- Performance
- precision, maintenance-free
- Applications
- shaft
- Rotational speed
Max.: 10,000 rpm
(62,831.8531 rad.min-1)Min.: 2,000 rpm
(12,566.3706 rad.min-1)- Backlash
Max.: 0.12 °
Min.: 0.02 °
Description
The most versatile model with wide range of ratios
High rigidity and output torque
Easy mount to any motor
Electroless nickel surface plating for anti-corrosion
Single-piece design for output shaft & planet carrier with robust bearings
Single-piece design for ring gear & housing
Single-piece design for sun gear & input shaft ensuring high concentricity
Full complement solid uncaged needle roller bearings for planet gears
All helical gearing for low noise and high precision
Extreme low vibration and lifelong maintenance-free
