Planetary gear reducer TF series
helical gearcoaxialsolid-shaft

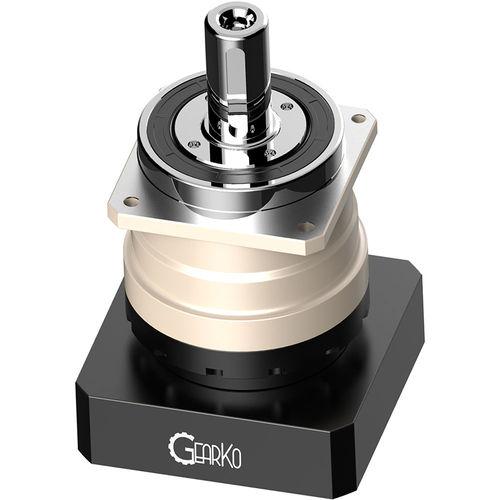

Planetary gear reducer - TF series - GEARKO - helical gear / coaxial / solid-shaft
Planetary gear reducer - TF series - GEARKO - helical gear / coaxial / solid-shaft
Add to favorites
Compare this product

Characteristics

Type
planetary, helical gear
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm
Performance
precision, maintenance-free
Applications
shaft
Rotational speed

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Backlash

Max.: 0.12 °

Min.: 0.02 °

Description

Enhanced load bearing for maximized axial and radial capability Higher load/size ratio for demanding applications Easy mount to any motor Electroless nickel surface plating for anti-corrosion Single-piece design for output shaft & planet carrier with robust bearings Single-piece design for ring gear & housing Single-piece design for sun gear & input shaft ensure high concentricity Full complement solid uncaged needle roller bearings for planetary gears All precision helical gearing for low noise and high precision Extreme low vibration and lifelong maintenance-free
