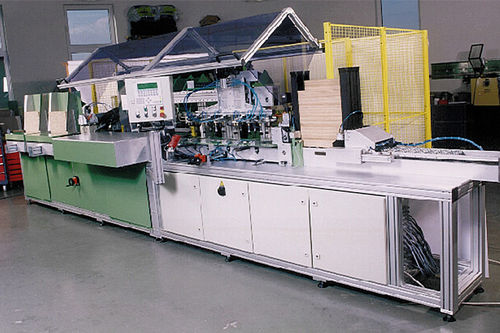

Automatic press TRP series

hotwith conveyorfor wood

Pressing length 1250 / 1500 mm Pressing width 160 / 250 mm 160 / 250 mm Infeed of base layers into hoppers (left side) with following glue application Infeed of top layer slats into hoppers (right side) A typical production line contains either 2 small version presses or 1 large version. The main differences between the 2 versions of the press are the capacity and the option of producing large elements. Max. block length for the small version is 600 mm, the large version offers up to 1200 (1500) mm length (or 2 resp. 3 pieces 500 mm long in a row). Infeed of top layer lamellas via hopper or conveyor, Infeed of base layer mats (or other type) via hopper or conveyor, automatic glue application (hot melt glue), placing of top layer lamellas on glued base layer, accurate position control of top layer lamellas, pressing with 12 - 18 kN / cm² (adjustable) and automatic outfeed with conveyor belt.
